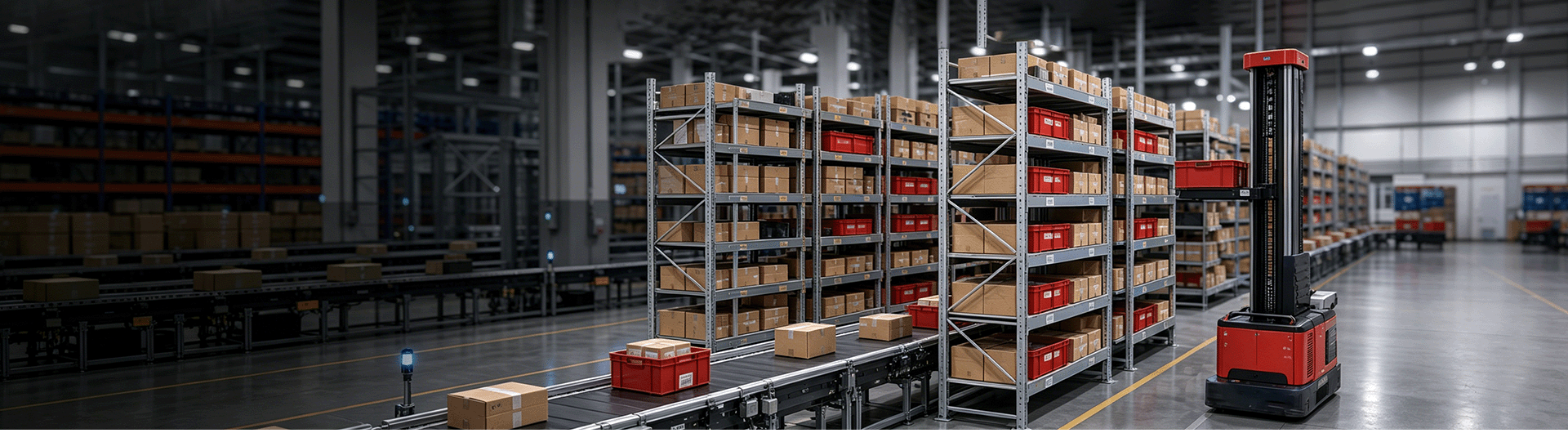

Bin-handling Robot
Overview
In robotic pallet handling applications, 3D cameras provide intelligent material-handling equipment with reliable three-dimensional perception capabilities. For neatly arranged pallets and storage bays, the cameras can rapidly identify pallet orientation and bay coordinates, enabling high-precision, high-throughput storage and retrieval operations;

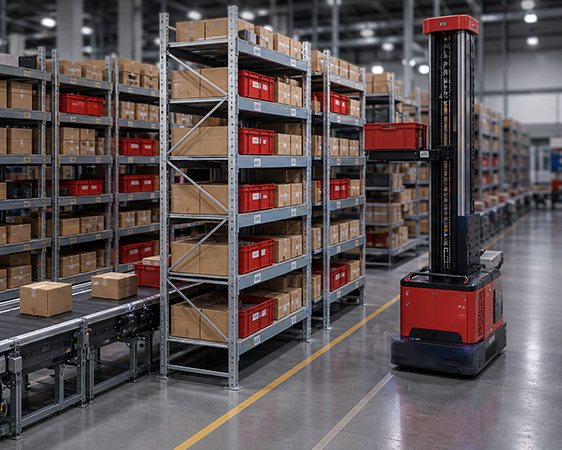

In complex, densely stacked warehouse areas, the camera uses point cloud data to accurately reconstruct the spatial configuration of the bins and their surrounding environment, guiding the robot to determine pick-and-place locations and avoid collisions, thereby facilitating the efficient handling of bin turnover in the warehouse.
Application Pain Points
-
The exterior materials of the bins vary, and creases and reflections can easily lead to recognition errors -
The shelving is arranged in a dense, compact manner, and the stacked bins obstruct the view considerably -
The complex lighting and dust conditions in the warehouse make it difficult to accurately assess the positioning of items during picking and placing
Advantage Description
-
Accurately capture 3D point clouds of storage racks to enable high-precision positioning for bin retrieval and placement
-
Intelligently identifies the stacking configuration of bins to help plan the optimal picking and placing routes
-
Resistant to stray light and dust in warehouses, ensuring stable operations in high-density storage areas
Recommended cameras
-

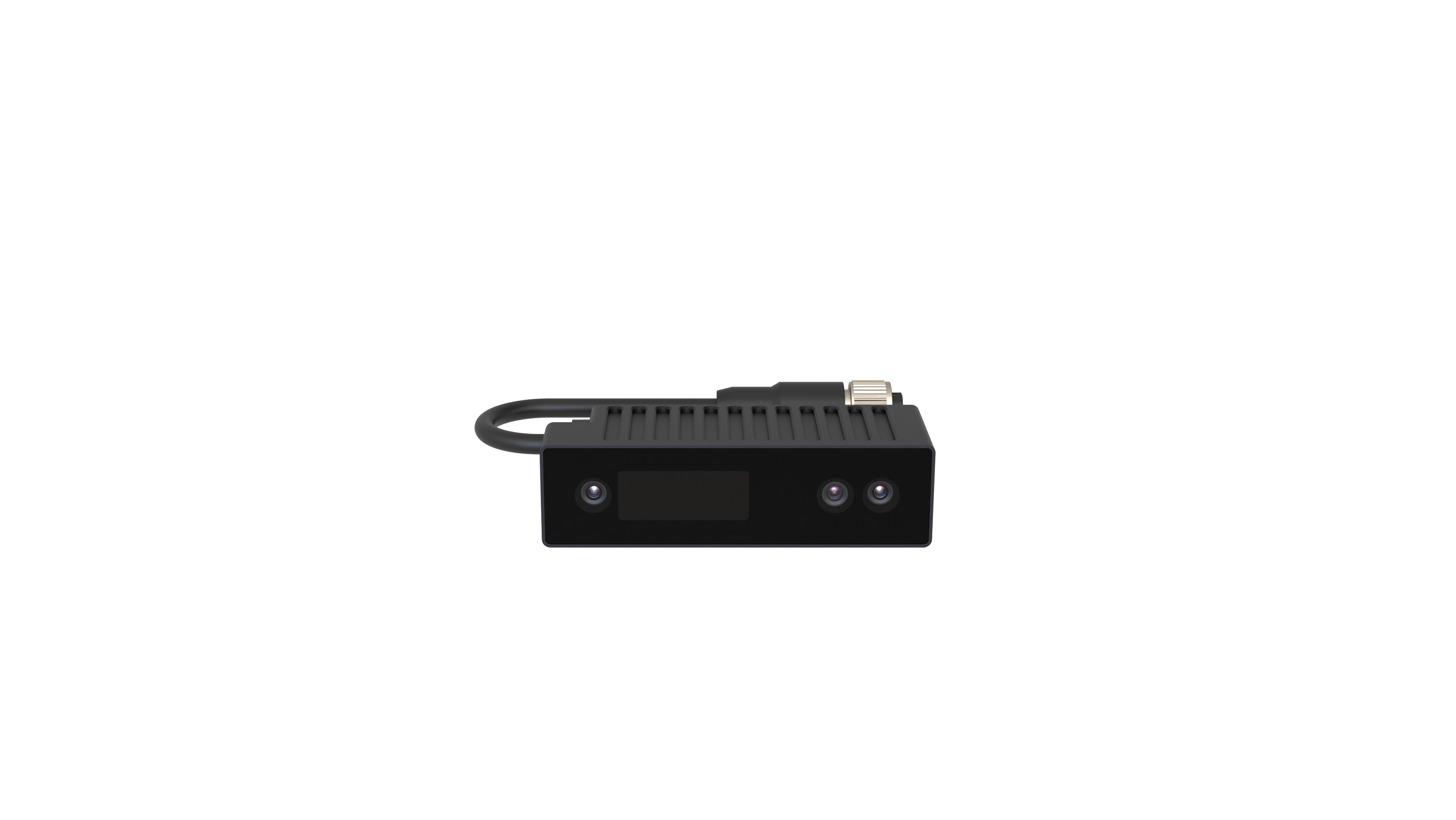

FM855-E1Utilising proprietary active stereo vision technology, it offers richer depth-of-field detail and greater environmental adaptability, supporting intelligent upgrades across multiple sectors including robotics, industry and commerce.
Learn More -

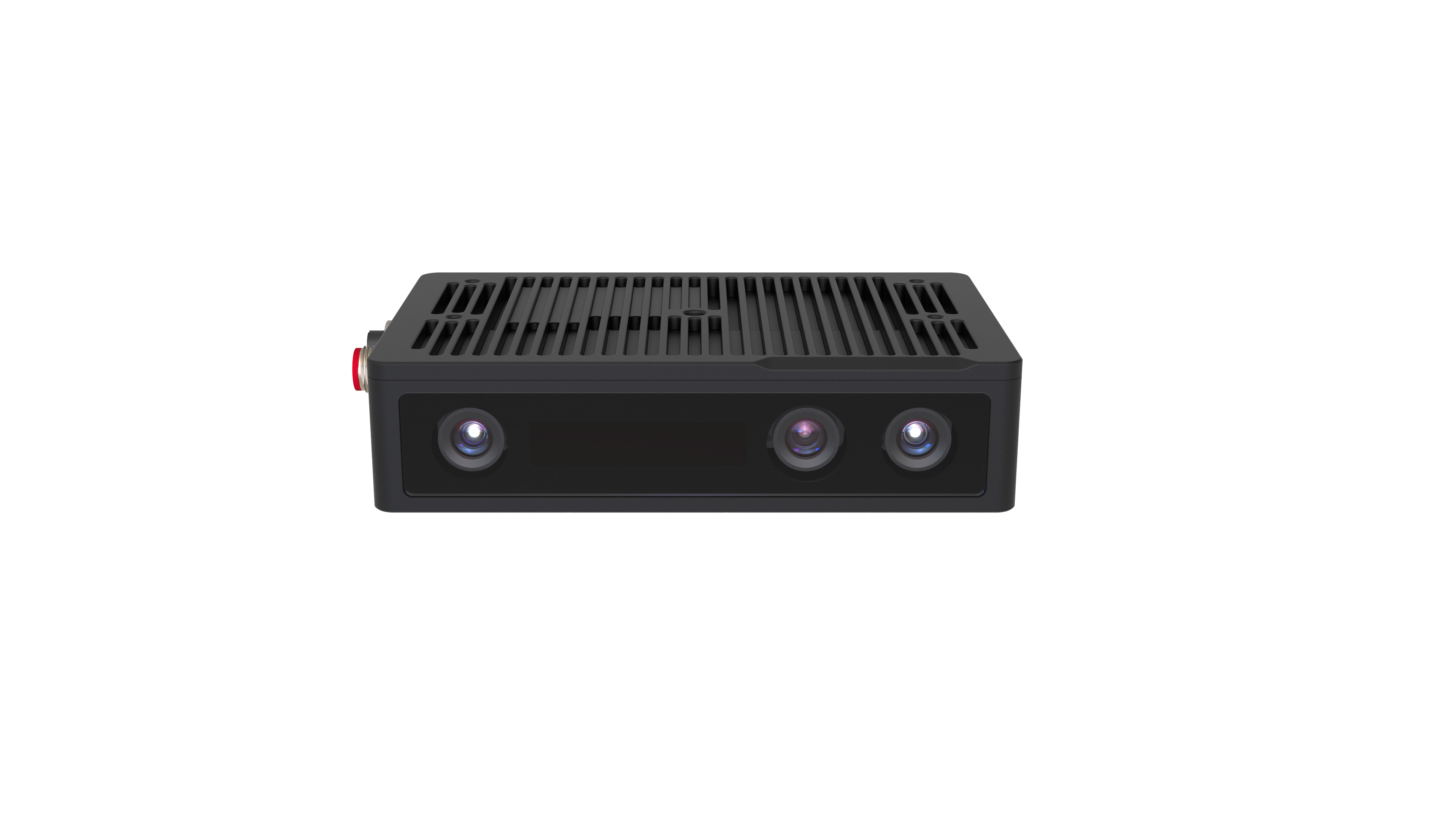

GM465-E1A cost-effective 3D industrial camera with a 100 Mbps Ethernet interface that combines industrial-grade accuracy with an affordable price. It supports both high-speed and high-precision modes and is suitable for a wide range of general-purpose applications across various fields.
Learn More -

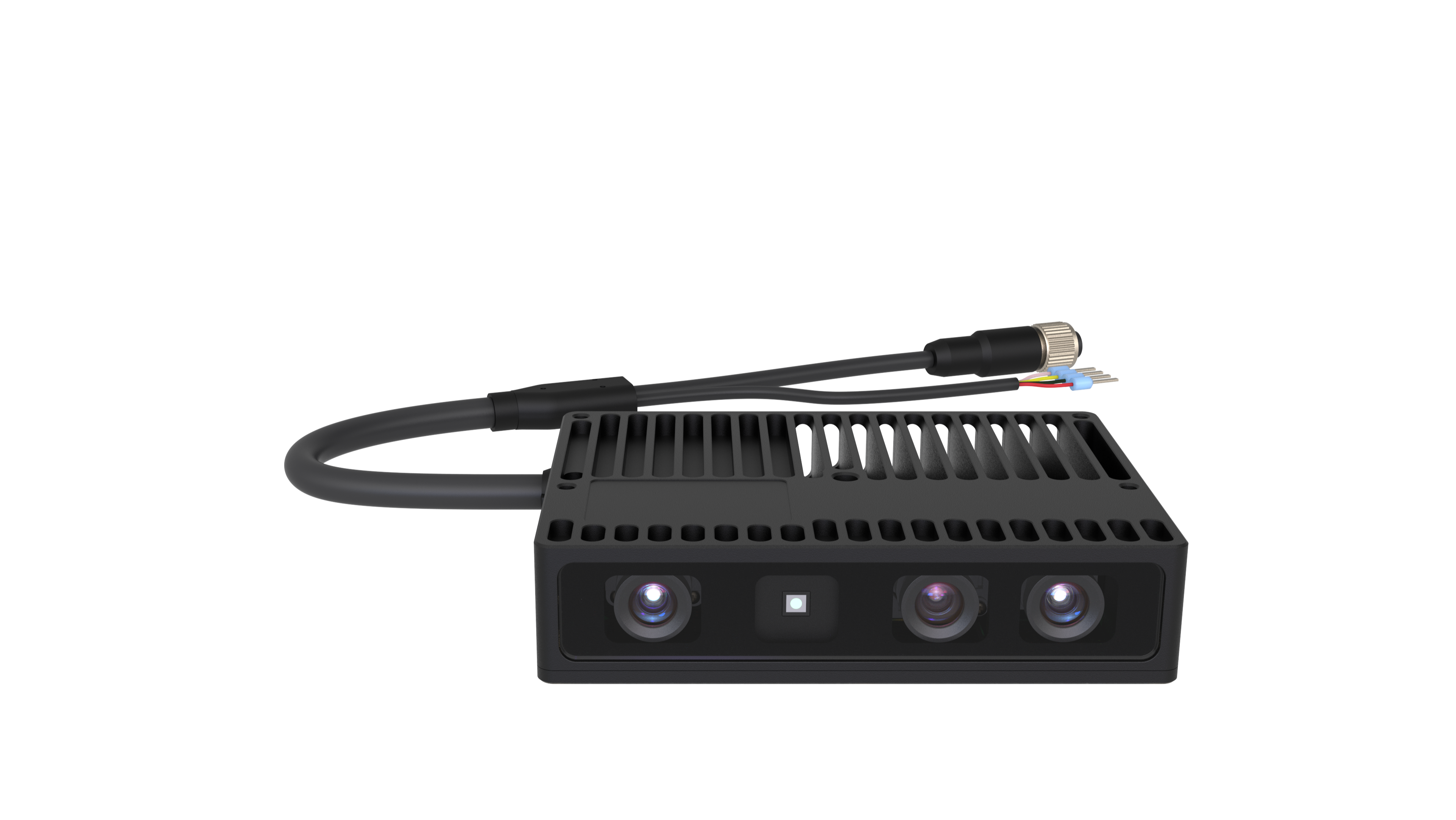

FM854-E1Utilising proprietary active stereo vision technology, it provides more comprehensive depth-of-field information and greater adaptability to the environment, helping to drive intelligent solutions across a wide range of sectors, including robotics and industry.
Learn More
