| Match with a camera | RVS-SE-A | RVS-SE-B | RVS-SE-C |
| stacking pattern | Supports common carton/soft package stacking types (e.g., dimensions of 1.2 m × 1.2 m × 1.8 m) | Supports common carton/soft package stacking types (e.g., dimensions of 1.2 m × 1.2 m × 1.8 m) | Supports common carton/soft package stacking types (e.g., dimensions of 1.2 m × 1.2 m × 1.8 m) |
| Single unpack / Mixed unpack | The standard plan does not support mixed dismantling | The standard plan does not support mixed dismantling | The standard plan does not support mixed dismantling |
| Software Recognition Time | 2.3s | 1.6s | 1.1s |
| Beat | Overall actual takt is related to layout, end effectors, and subsequent processes | Overall actual takt is related to layout, end effectors, and subsequent processes | Overall actual takt is related to layout, end effectors, and subsequent processes |
| Working distance (Distance to the farthest box/bag) | 3.5m | 3.0m | 3.5m |
| Robot Brand | Compatible with various major robot brands | Compatible with various major robot brands | Compatible with various major robot brands |
| Communication protocol | Supports TCP, Modbus, S7, and other protocols, compatible with various PLCs | Supports TCP, Modbus, S7, and other protocols, compatible with various PLCs | Supports TCP, Modbus, S7, and other protocols, compatible with various PLCs |
| Applicable Scenarios | Indoor | Indoor | Indoor / Outdoor |
| Installation method | Fixed installation | Fixed / On the robotic arm | Fixed / On the robotic arm |
Supports various stacking configurations for both corrugated boxes and flexible packaging

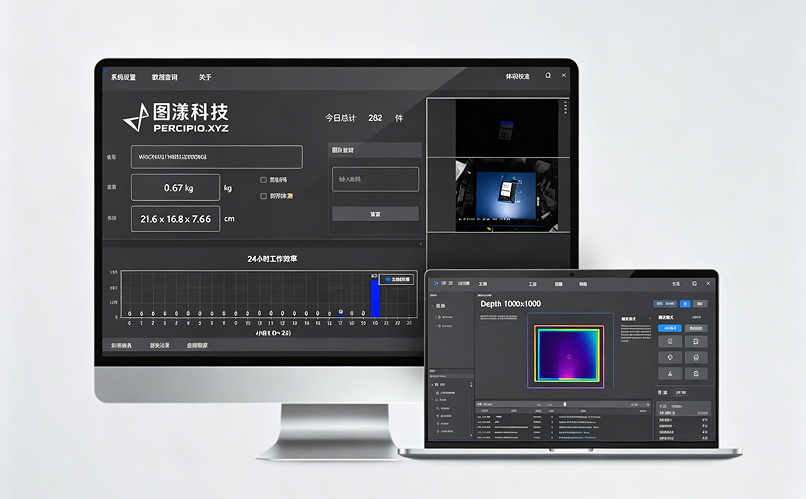

No-code software is easy to deploy and maintain.

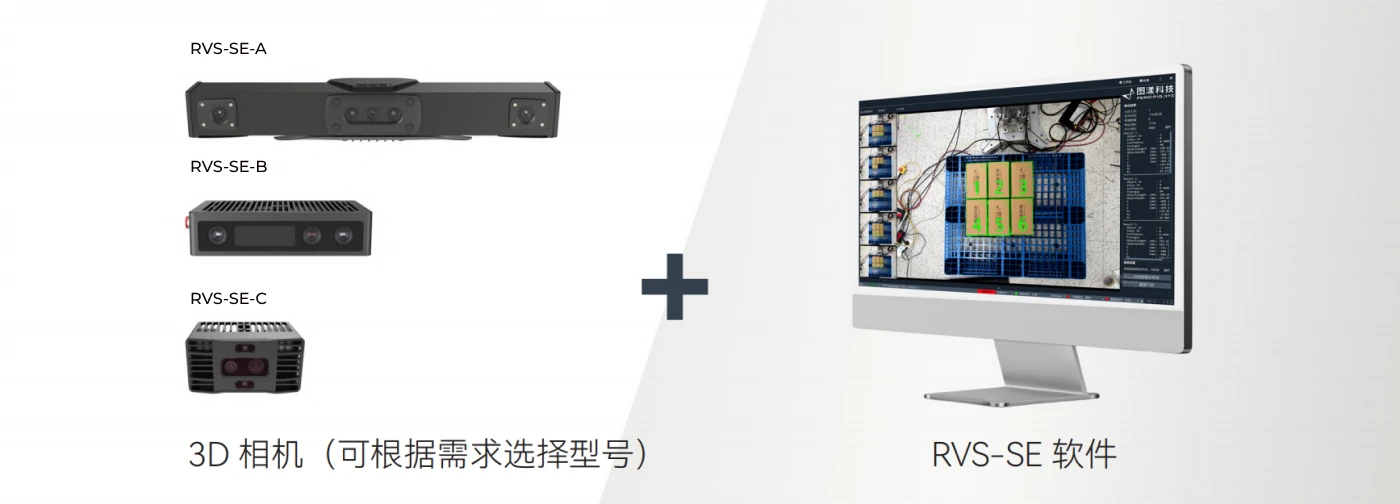

Three camera configurations for every scenario
