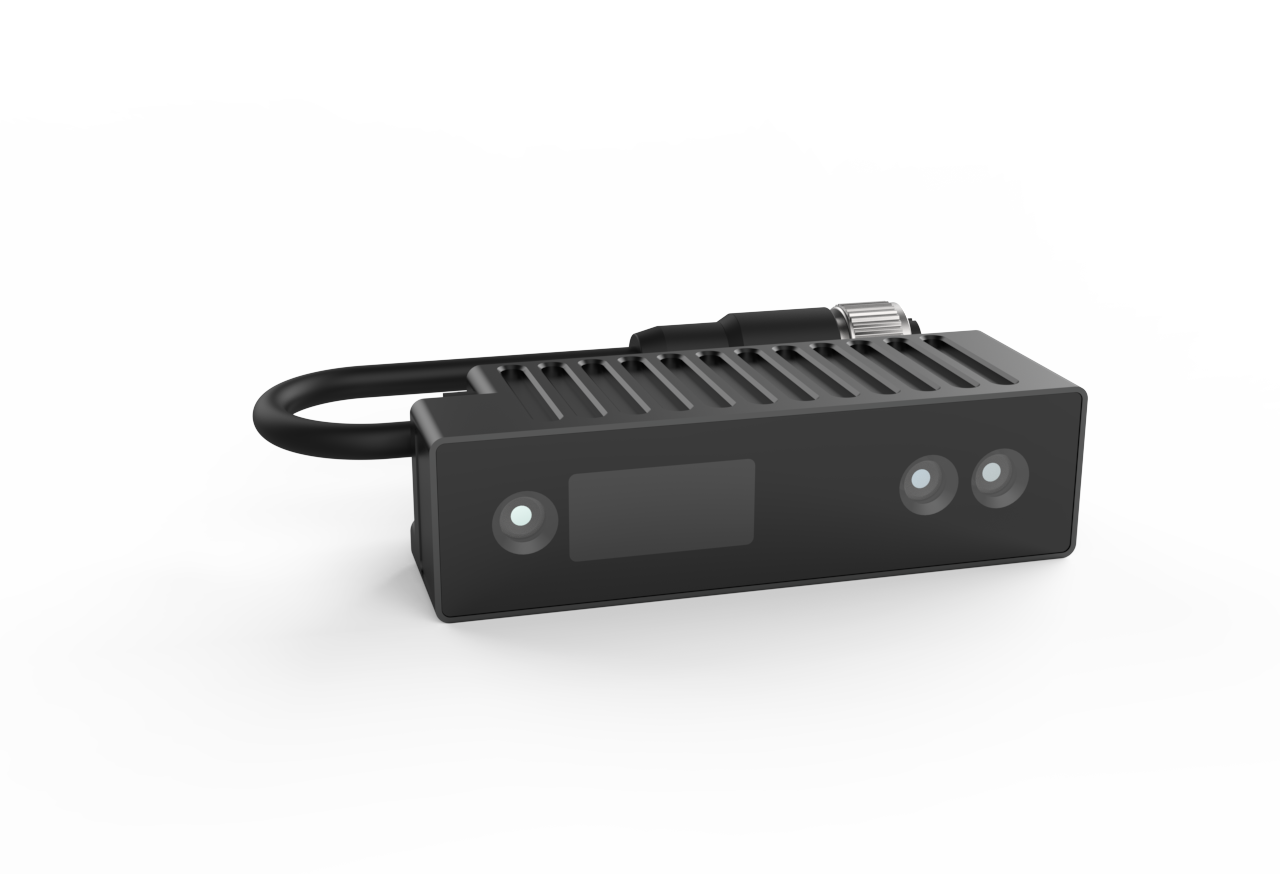

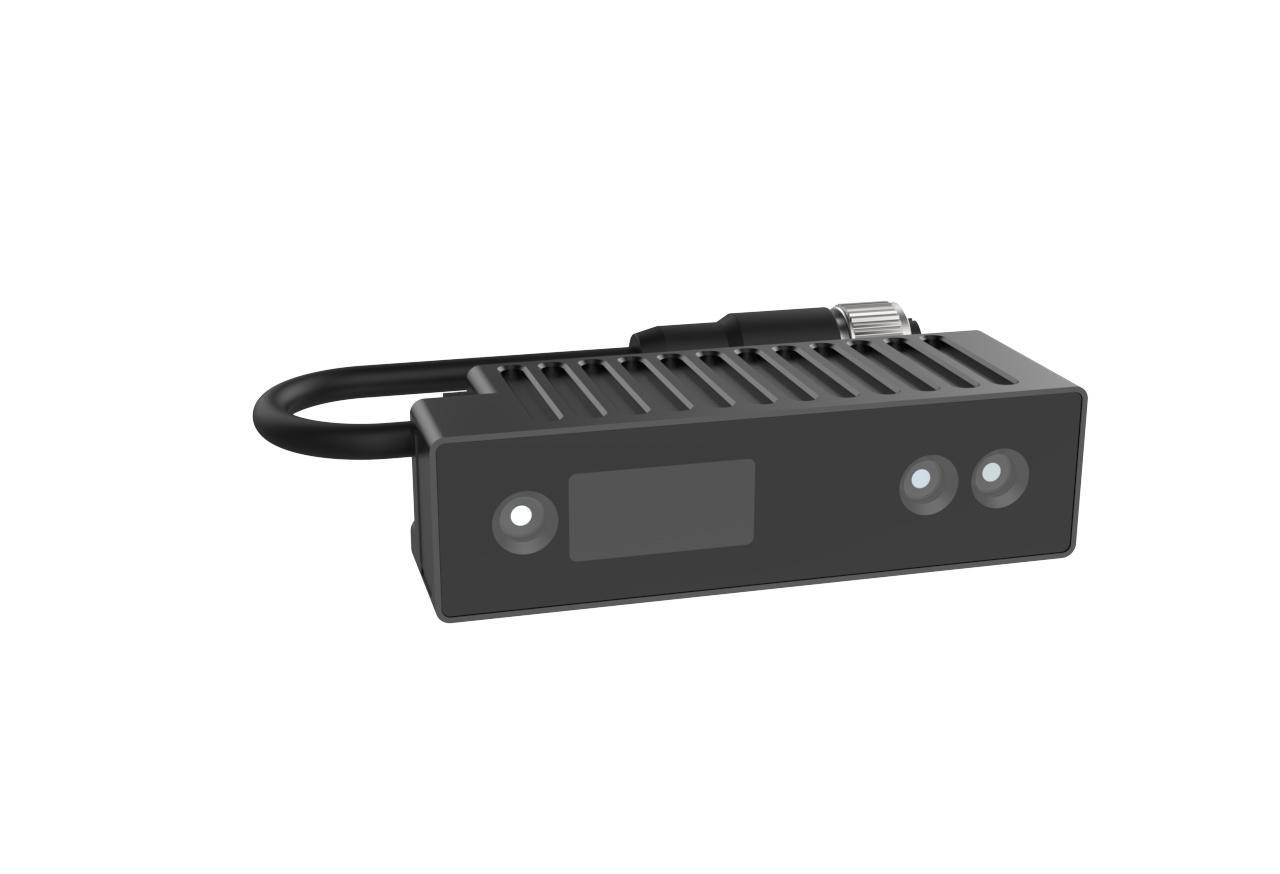

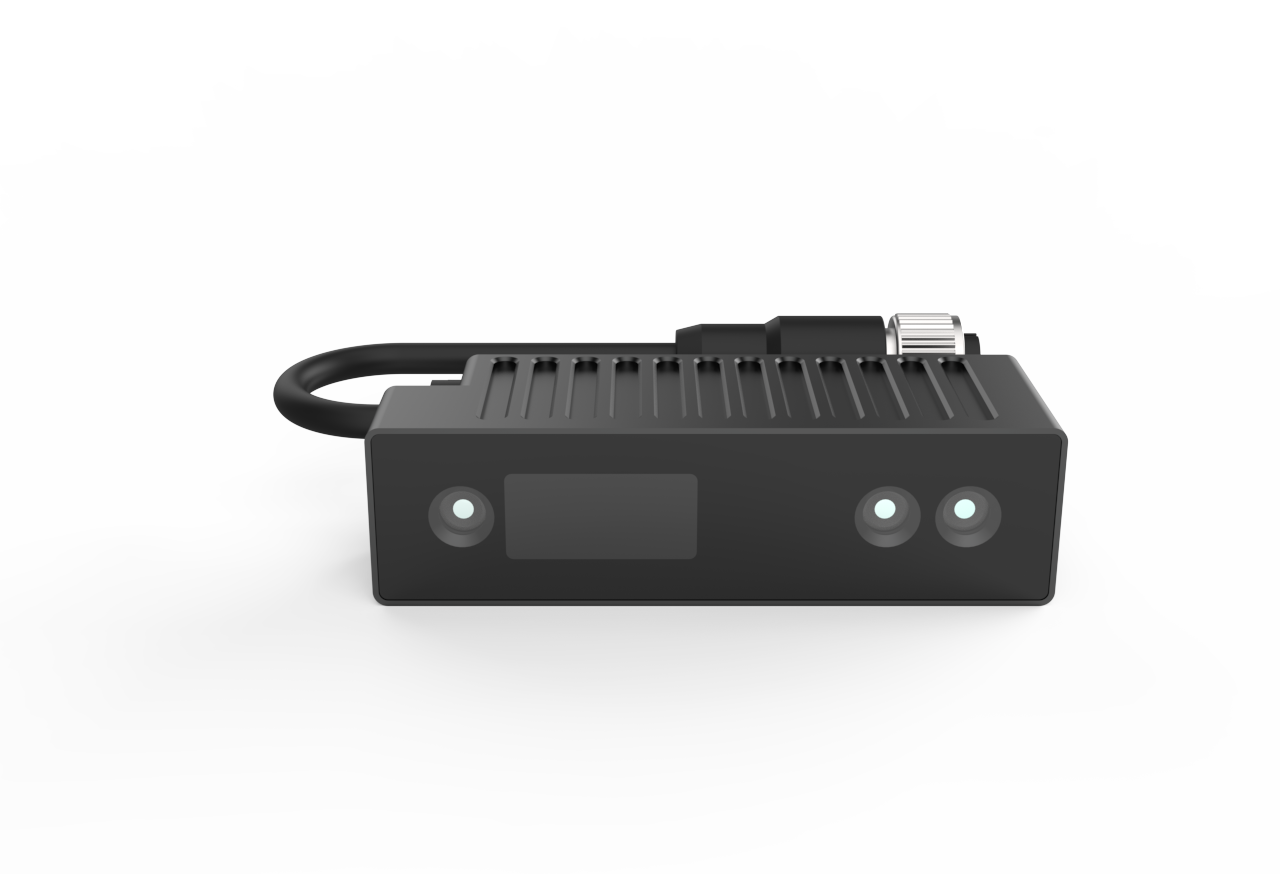

GM465-E1
A cost-effective 3D industrial camera with a 100 Mbps Ethernet interface, combining industrial-grade precision with an affordable price. It supports both high-speed and high-precision modes and is suitable for a wide range of general-purpose applications.
-
Bilateral speckle-pattern illuminated light -
Operating distance:
0.15–5 m -
Maximum depth resolution: 1280×800 -
Maximum color resolution: 1280×960 -
100 Mbps Ethernet -
Protection rating: IP65
-
Technical Specifications
-
Product Features
-
Downloads
Field of View Diagram
Swipe Left
| Technical Principles | Active stereo |
| Laser wavelength | 940nm |
| Light source | 2 x infrared lasers |
| Shutter Type | Global |
| Rendering delay | 137ms |
| Depth Resolution | 30fps@640*480（MAX） |
| Frame Rate @ Resolution (Color) | 33fps@640*480（MAX） |
| RGB Resolution | Support |
| Output image | Depth map, colour image, infrared image, point cloud |
| Accuracy(Z) | 0.8mm@1000mm 2.30mm@1500mm |
| Accuracy(XY) | 8.8mm@1000mm 2.30mm@1500mm |
| FOV（H/V） | 74°/59° |
| Baseline | 66mm |
| Working Distance | 300 mm ~ 3000 mm |
| Maximum range | 150 mm ~ 5000 mm |
| Near field | 400mm x 339mm@300mm |
| Far field | 4521mm x 3394mm@3000 mm |
| Host operating system | Linux/Windows/ROS |
| Software Development Kit | Percipio Camport SDK; supports programming languages such as C, C++, C# and Python |
| Size | 90 mm x 25 mm x 32 mm |
| Weight | 135g |
| Data Connector | 100-Gigabit Ethernet for Aviation Interfaces |
| Power Supply | M12 A-Code 8 |
| Power & Trigger Connector | / |
| Power Consumption | < 3.5 W |
| Housing Material | aluminium alloy |
| Ingress Protection | IP65 |
| Cooling method | Passive cooling |
| Installation Method | Mechanical fastening (M3 thread) |
| Supply voltage | DC 24V ± 20% |
| Temperature | 0 ℃ ~ 45℃ |
| Storage temperature | -10 ℃ ~ 55℃ |
Far field of view
4521 mm x 3394 mm @ 3000 mm (H/V ≈ 74°/59°)

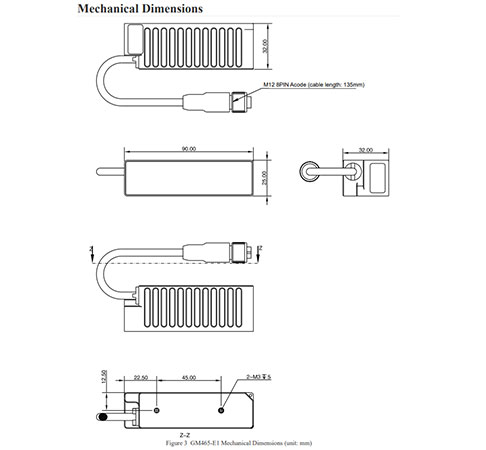

Mechanical Dimensions
Industry Applications
