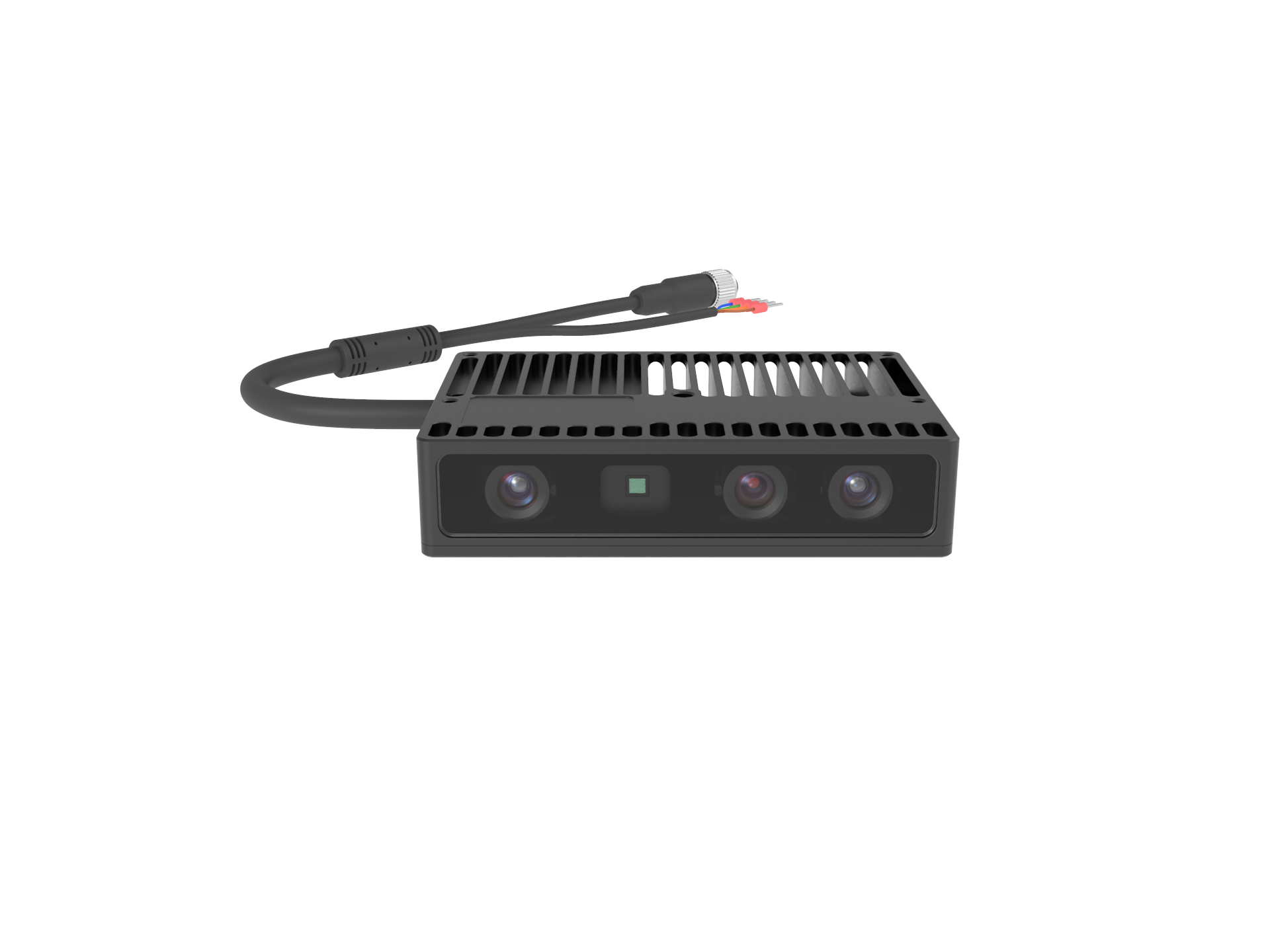

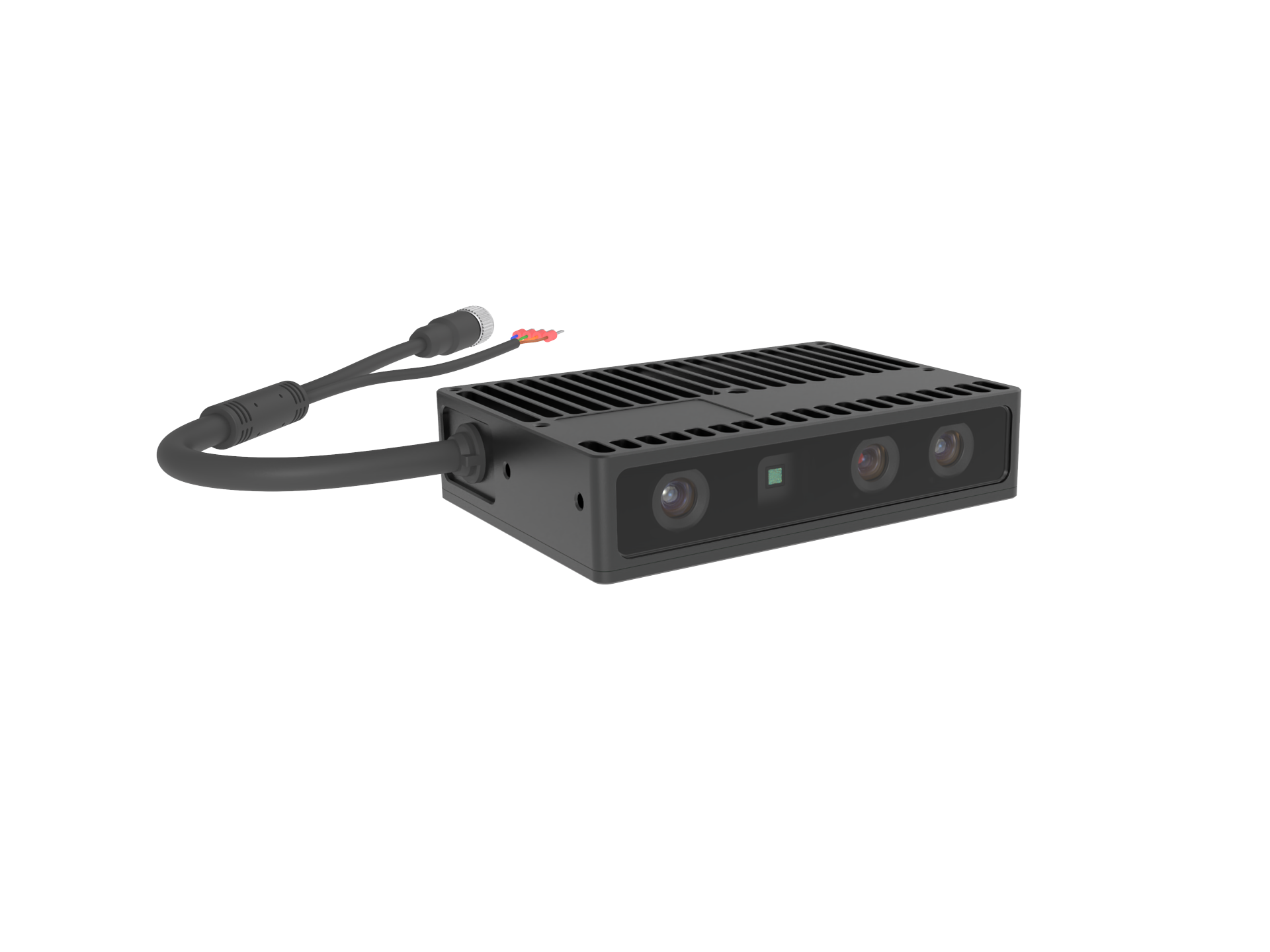

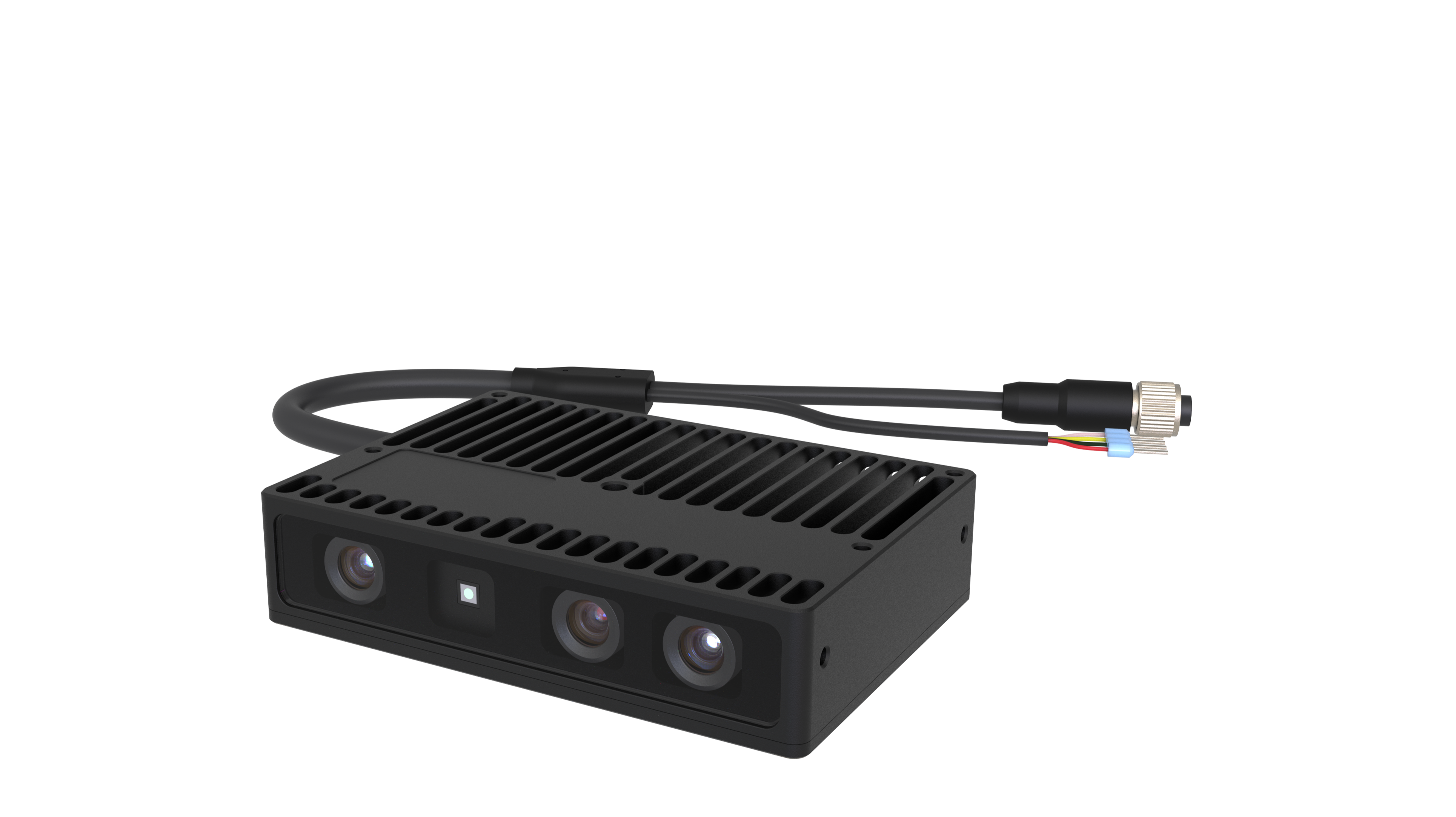

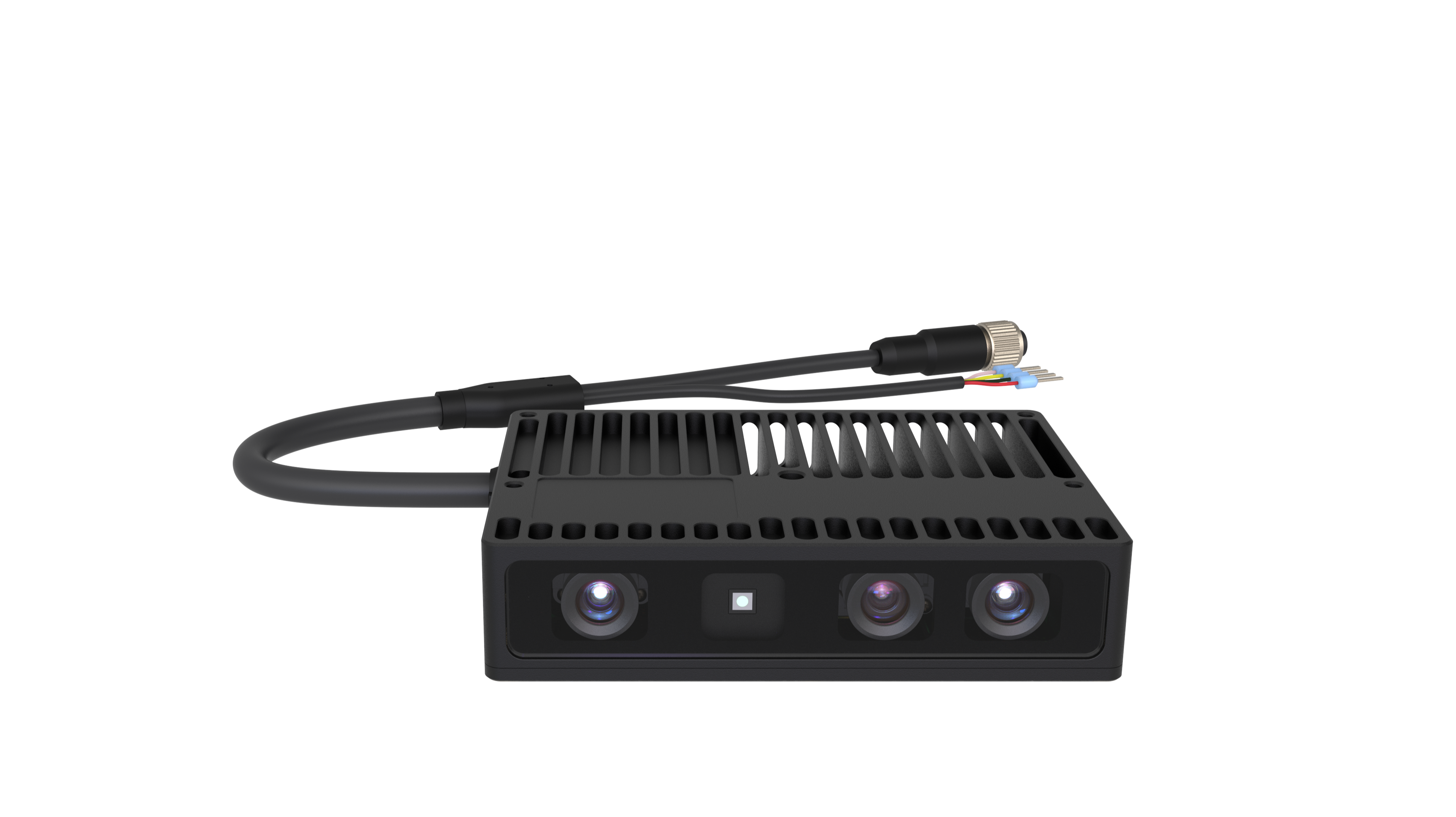

FM854-E1
Utilizing proprietary active stereo vision technology, this solution provides more comprehensive depth-of-field information and stronger environmental adaptability, enabling intelligent applications across various fields such as robotics and industry.
-
Technical Specifications
-
Product Features
-
Downloads
Field of View Diagram
Swipe Left
| Technical Principles | Active stereo |
| Laser wavelength | 940nm |
| Light source | 1 x infrared laser |
| Shutter Type | Global |
| Rendering delay | 157ms |
| Depth Resolution | 15 fps @ 1280 x 960 26 fps @ 640 x 480 26 fps @ 320 x 240 |
| Frame Rate @ Resolution (Color) | 4fps@2560 x 1920@YUYV 5fps@2560 x 1920@CSI BAYER12GBRG 8fps@1920 x 1440@YUYV 16fps@1280 x 960@YUYV 25fps@640 x 480@YUYV |
| RGB Resolution | Support |
| Output image | Depth map, colour image, infrared image, point cloud |
| Accuracy(Z) | 1.58mm@1000mm 4.15mm@1500mm |
| Accuracy(XY) | 7.77mm@1000mm 11.66mm@1500mm |
| FOV（H/V） | 60°/47° |
| Baseline | 79mm |
| Working Distance | 700mm~3000mm |
| Maximum range | 700mm ~ 4500mm |
| Near field | 744mm x 608mm@700mm |
| Far field | 3464mm x 2608mm@3000mm |
| Host operating system | Linux/Windows/ROS |
| Software Development Kit | Percipio Camport SDK; supports programming languages such as C, C++, C# and Python |
| Size | 124 mm x 29 mm x 87 mm |
| Weight | 414 g |
| Data Connector | Gigabit Ethernet |
| Power Supply | M12 A-Code 8-pin aviation connector |
| Power & Trigger Connector | 4 PIN |
| Power Consumption | <8.2 W |
| Housing Material | aluminium alloy |
| Ingress Protection | IP65 |
| Cooling method | Passive cooling |
| Installation Method | Mechanical fastening (M4 thread) |
| Supply voltage | DC 24V ±10% |
| Temperature | 0 ℃ ~ 45 ℃ |
| Storage temperature | -10 ℃ ~ 55 ℃ |

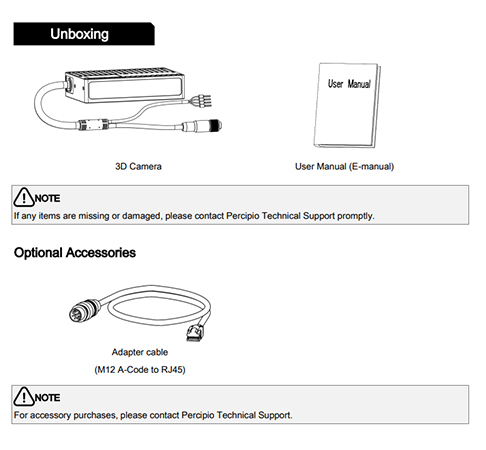

Unboxing

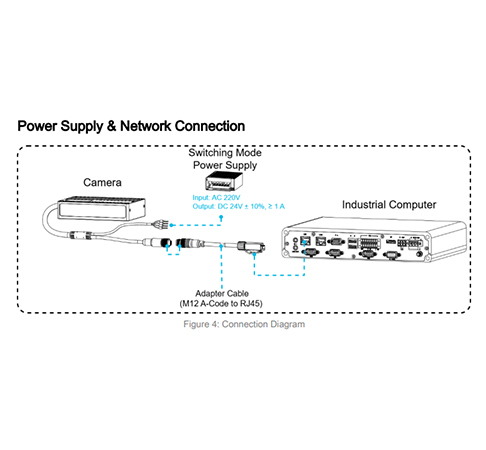

Power Supply & Network Connection
Industry Applications
