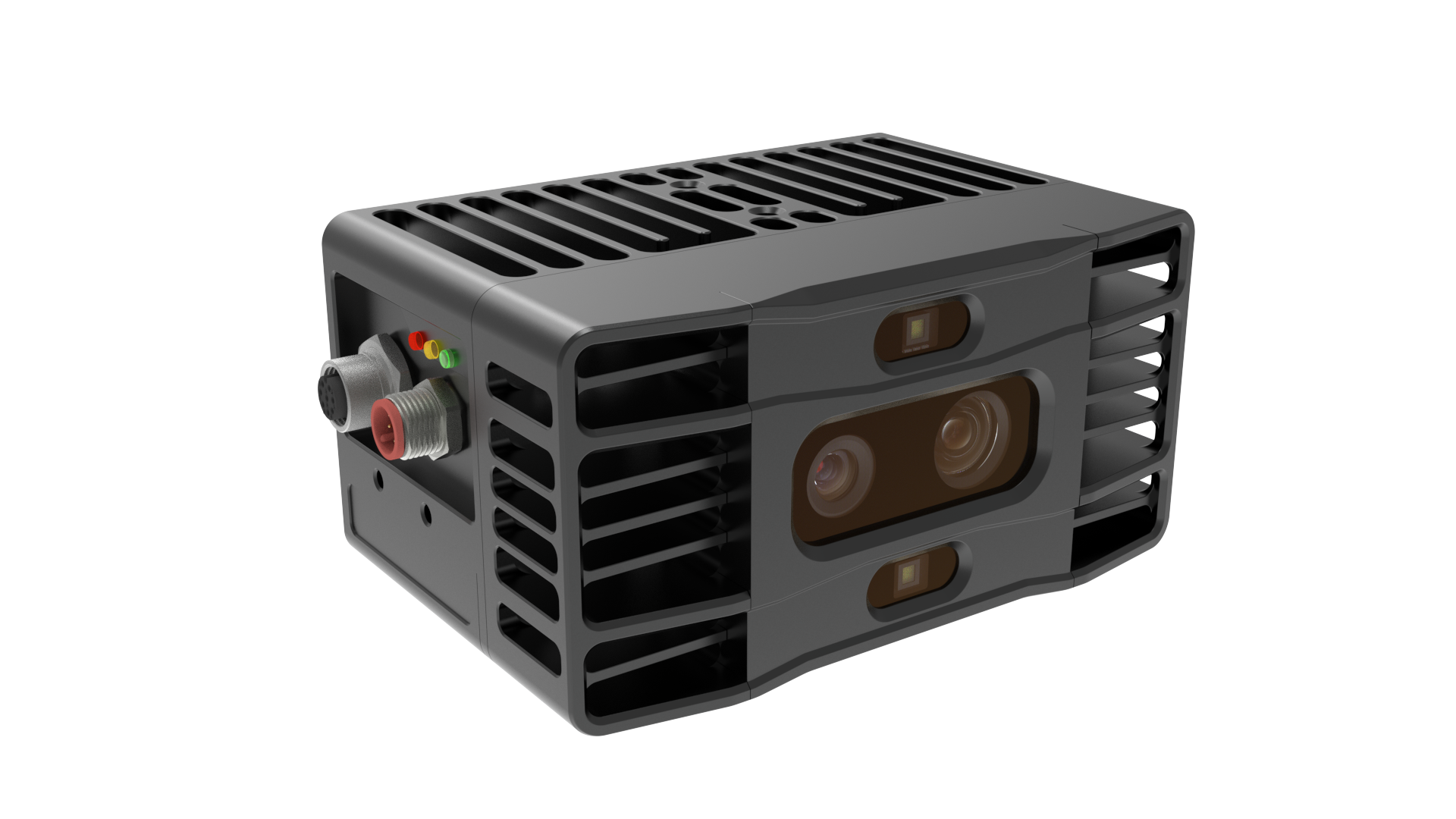

TL460-S1-E1
3D depth camera with millimeter-level accuracy, VGA depth resolution, and 2MP color resolution; detection range up to 9.5 meters; frame rate of 30 fps; suitable for integration into various applications such as long-range measurement and robotics.
-
Principles of iToF Ranging -
Operating distance:
0.3 m–9.5 m -
Wide field of view: 62°/49° -
Maximum depth resolution: 640×480 -
Maximum color resolution: 1920×1080 -
Gigabit Ethernet, IP67 rating
-
Technical Specifications
-
Product Features
-
Downloads

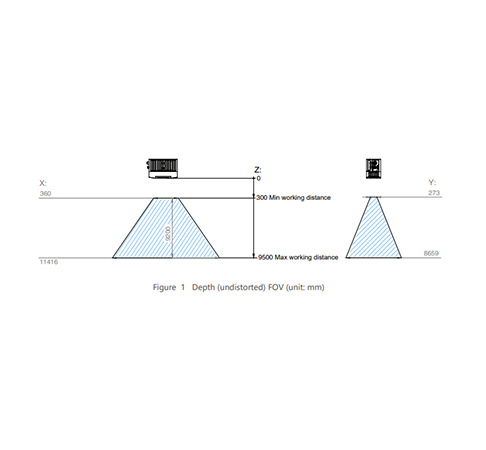

Field of View Diagram
Swipe Left
| Technical Principles | iToF |
| Laser wavelength | 940nm |
| Light source | 2 x infrared lasers |
| Shutter Type | Global |
| Rendering delay | 143 ms |
| Depth Resolution | 30fps@640*480（MAX） |
| Frame Rate @ Resolution (Color) | 28 fps @ 1920 x 1080 @ CSI |
| RGB Resolution | Support |
| Output image | Depth map, colour image, infrared image, point cloud |
| Accuracy(Z) | 3mm@1000mm 6mm@2500mm |
| Accuracy(XY) | 2mm@1000mm 5mm@2500mm |
| FOV（H/V） | 62°/49° |
| Baseline | / |
| Working Distance | 300mm ~ 5000mm |
| Maximum range | 300mm ~ 9500mm |
| Near field | 360mm x 273mm@300mm |
| Far field | 11416mm x 8659mm@9500 mm |
| Host operating system | Linux/Windows/ROS |
| Software Development Kit | Percipio Camport SDK |
| Size | 140 mm x 94 mm x 70 mm |
| Weight | 1100 g |
| Data Connector | Gigabit Ethernet |
| Power Supply | M12 A-Code 8-pin aviation connector |
| Power & Trigger Connector | Supports 1 channel of trigger input/output, falling-edge trigger |
| Power Consumption | <29.68 W |
| Housing Material | aluminium alloy |
| Ingress Protection | IP67 |
| Cooling method | Passive cooling |
| Installation Method | Mechanical fastening (M4 thread) |
| Supply voltage | DC 24V；PoE (IEEE802.3 at) |
| Temperature | 0 ℃ ~ 50 ℃ |
| Storage temperature | -20 ℃ ~ 55 ℃ |
Field of view (RGB)
1911 mm x 1152 mm @ 1500 mm (H/V ≈ 65°/42°)

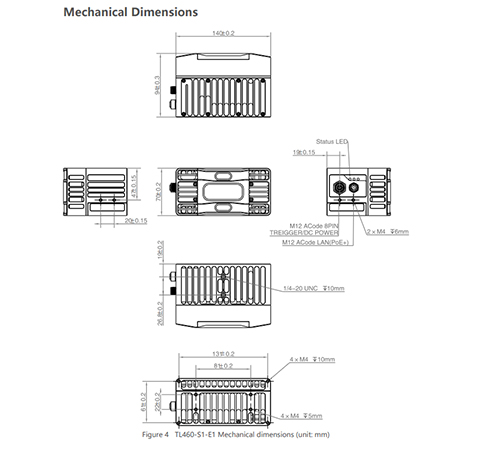

Mechanical Dimensions
