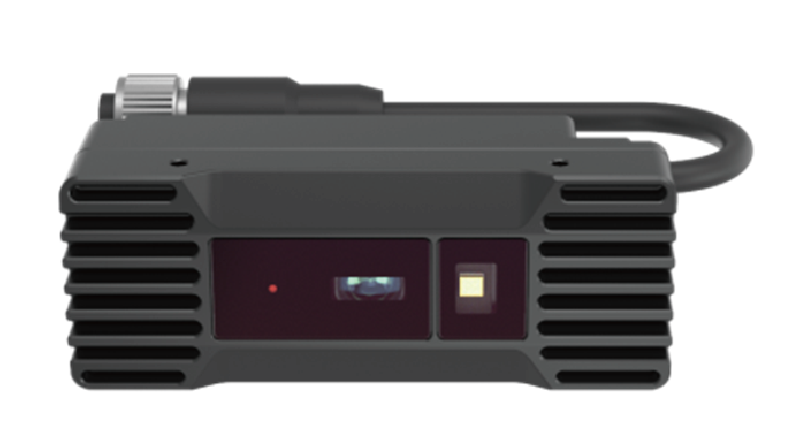

TM262-E1
dToF depth-sensing camera: cost-effective, ultra-wide field of view, resistant to sunlight interference, industrial-grade stability and compact design, suitable for a wide range of indoor and outdoor applications.
-
The Principle of dToF Ranging -
Operating distance:0.05m-8m -
Wide field of view: 120°/50° -
Maximum depth resolution: 240×96 -
100 Mbps Ethernet -
IP65 protection rating
-
Technical Specifications
-
Product Features
-
Downloads

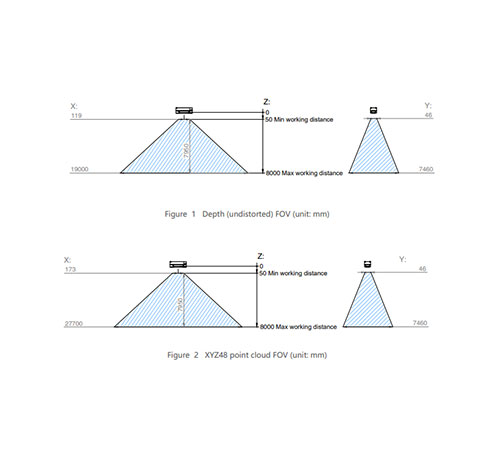

Field of View Diagram
Swipe Left
| Technical Principles | dToF |
| Laser wavelength | 940nm |
| Light source | 1 x infrared laser |
| Shutter Type | ROlling |
| Rendering delay | 55 ms |
| Depth Resolution | 25fps@240*96（MAX） |
| Frame Rate @ Resolution (Color) | / |
| RGB Resolution | / |
| Output image | Depth map, infrared image, point cloud |
| Accuracy(Z) | 6mm@1000mm 15mm@2500mm |
| Accuracy(XY) | 10mm@1000mm 25mm@2500mm |
| FOV（H/V） | 120°/50° |
| Baseline | / |
| Working Distance | 300mm ~ 3000mm |
| Maximum range | 50mm ~ 8000mm |
| Near field | 119mm x 46mm@50mm |
| Far field | 19000mm x 7460mm @ 8000 mm |
| Host operating system | Linux/Windows/ROS |
| Software Development Kit | Vcamera SDK: Supports C++, C# and Python. Camport4 SDK: Supports C++. |
| Size | 90 mm x 34 mm x 30 mm |
| Weight | 130 g |
| Data Connector | / |
| Power Supply | M12 A-Code 8-pin aviation connector |
| Power & Trigger Connector | Supports 1 trigger input/output channel, triggered by falling edge |
| Power Consumption | < 4.0 W |
| Housing Material | aluminium alloy |
| Ingress Protection | IP65 |
| Cooling method | Passive cooling |
| Installation Method | Mechanical fastening (M3 thread) |
| Supply voltage | DC 24V ±20% |
| Temperature | 0 ℃ ~ 45 ℃ |
| Storage temperature | -30 ℃ ~ 60 ℃ |
Field of view (XYZ48 point cloud)
Near: 173 mm x 46 mm @ 50 mm (H/V ≈ 120°/50°)
Far: 27700 mm x 7460 mm @ 8000 mm (H/V ≈ 120°/50°)

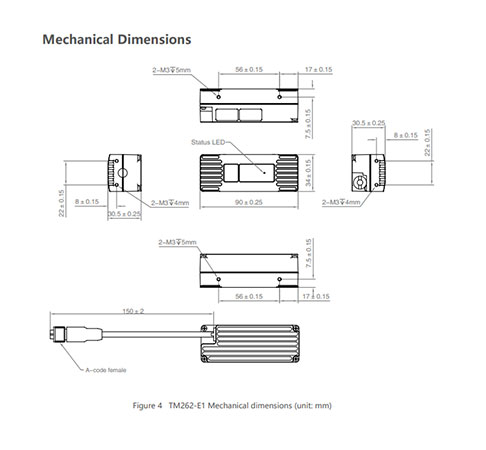

Mechanical Dimensions
