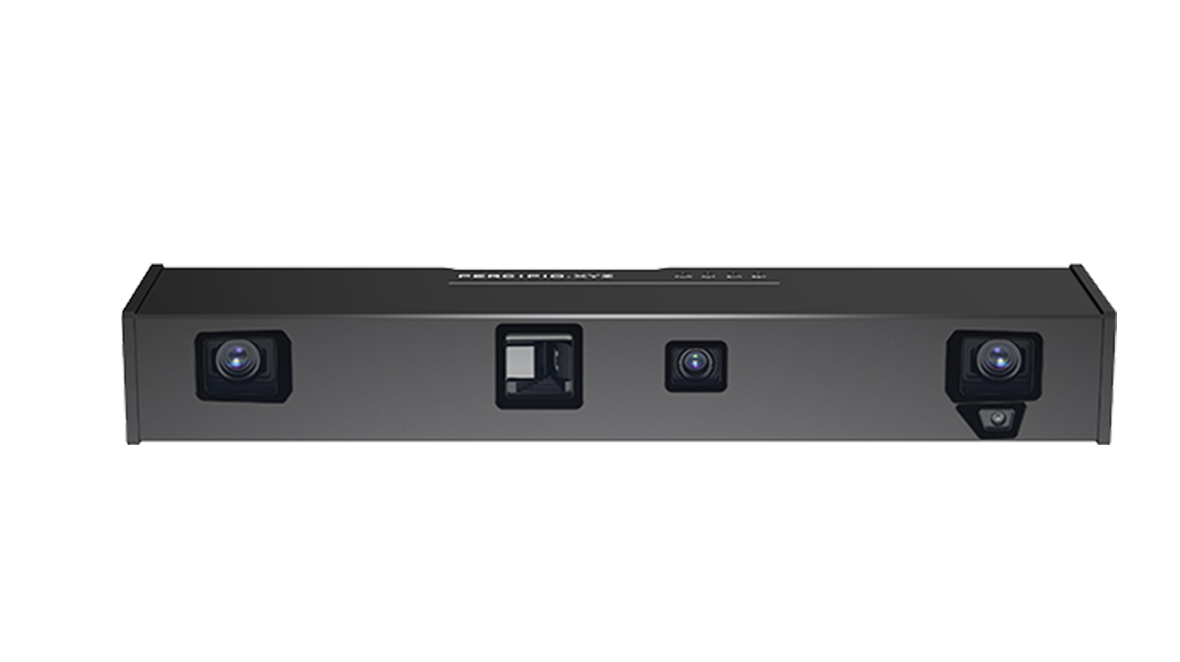

VMD03-8521(C)*
3D smart cameras, equipped with active stereo vision technology, offer rich depth-of-field detail and strong environmental adaptability, driving intelligent upgrades in robotics, industrial, and commercial sectors.
-
Dual-lens structured light -
Working distance:
0.85–2.1m -
Maximum depth resolution: 20480 × 1536 -
Maximum color resolution: 2560 × 1920 -
Gigabit Ethernet -
IP65 rating
-
Technical Specifications
-
Product Features
-
Downloads

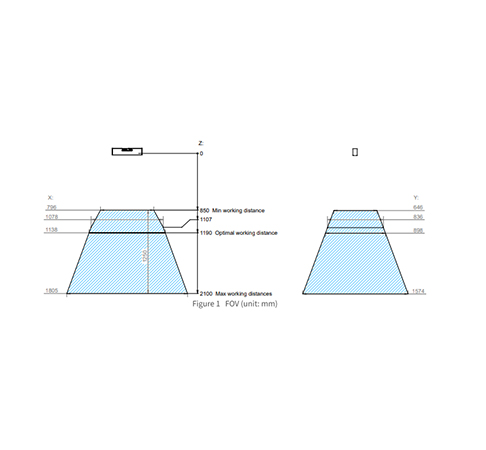

Field of View Diagram
Swipe Left
| Technical Principles | Dual-camera + structured light |
| Laser wavelength | 635 nm (red light) |
| Light source | laser |
| Shutter Type | Global |
| Rendering delay | ~2020ms @ Standard ~2390ms @ Quality ~1719ms @ Fast |
| Depth Resolution | up to 1.14FPS @ 2048 x 1536 /1024 x 768 / 512 x 384 |
| Frame Rate @ Resolution (Color) | 5fps@2560 x 1920@YUYV 7fps@2560 x 1920@CSI BAYER12GBRG 9fps@1920 x 1440@YUYV 15fps@1280 x 960@YUYV 15fps@640 x 480@YUYV |
| RGB Resolution | Support |
| Output image | Depth map, colour map, greyscale map, point cloud |
| Accuracy(Z) | 0.065 @ 850mm 0.08 @ 1190mm 0.21 @ 2100mm |
| Accuracy(XY) | 0.43 @ 850mm 0.6 @ 1190mm 1.06 @ 2100mm |
| FOV（H/V） | max 51°/41°±3° |
| Baseline | 350 |
| Working Distance | 1000-2000 |
| Maximum range | 850-2100 |
| Near field | 796 x 646 |
| Far field | 1805 x 1574 |
| Host operating system | Linux/Windows/ROS |
| Software Development Kit | Vcamera + Camport4 |
| Size | 449 mm x 104 mm x 64 mm |
| Weight | 2307g |
| Data Connector | Gigabit Ethernet |
| Power Supply | M12 A-Code 8 |
| Power & Trigger Connector | M12 X-Code 8-pin aviation connector |
| Power Consumption | ≤ 24 W |
| Housing Material | aluminium alloy |
| Ingress Protection | IP65 |
| Cooling method | Passive cooling |
| Installation Method | Mechanical fastening |
| Supply voltage | DC 24 V ~ 48 V |
| Temperature | 0 ~ 40℃ |
| Storage temperature | -10 ℃ ~ 55 ℃ |
Far field of view
1805 mm x 1574 mm @ 2100 mm (H/V ≈ 47°/41°)

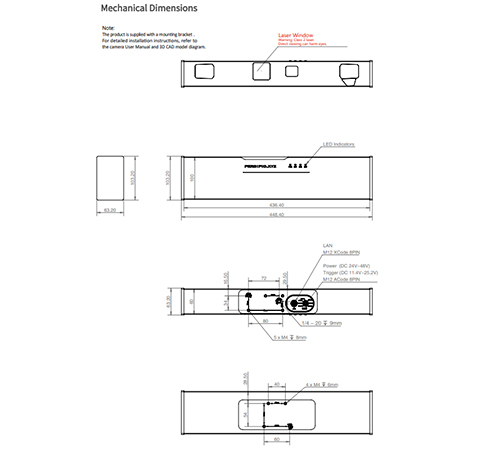

Mechanical Dimensions
