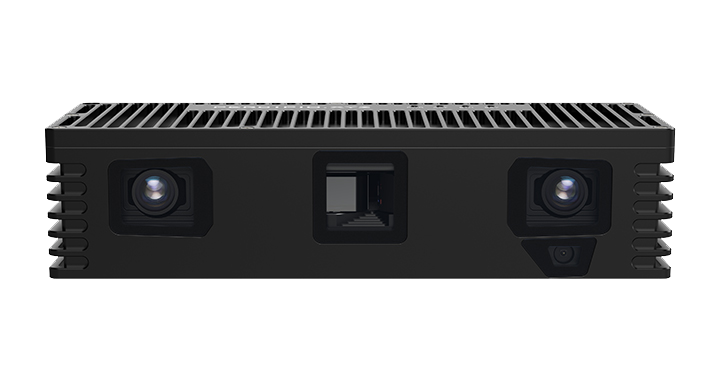

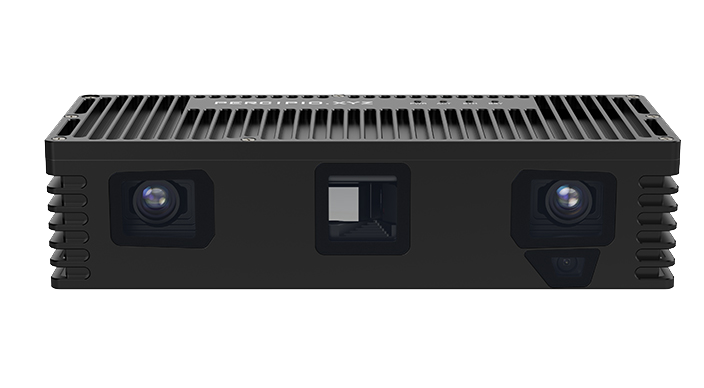

VMD02-5011
3D smart cameras, based on active stereo vision technology, offer superior depth-of-field performance and greater environmental adaptability compared to traditional stereo systems, enabling intelligent applications across multiple fields.
-
Dual-eye structured light -
Working distance:
0.5–1.1 m -
Maximum depth resolution: 20480 × 1536 -
Gigabit Ethernet -
IP65 rating
-
Technical Specifications
-
Product Features
-
Downloads
Field of View Diagram
Swipe Left
| Technical Principles | Dual-camera + structured light |
| Laser wavelength | 635 nm (red light) |
| Light source | laser |
| Shutter Type | Global |
| Rendering delay | ~1950ms @ Standard ~2300ms @ Quality ~1718ms @ Fast |
| Depth Resolution | up to 1.14FPS @ 2048 x 1536 /1024 x 768 / 512 x 384 |
| Frame Rate @ Resolution (Color) | / |
| RGB Resolution | Support |
| Output image | Depth map, greyscale image, point cloud |
| Accuracy(Z) | 0.030 @ 500mm 0.055 @ 660mm 0.130 @ 1100mm |
| Accuracy(XY) | 0.25 @ 500mm 0.33 @ 660mm 0.55 @ 1100mm |
| FOV（H/V） | max 51°/41°±3° |
| Baseline | 180 |
| Working Distance | 500-1000 |
| Maximum range | 500-1100 |
| Near field | 482 x 382 |
| Far field | 986 x 831 |
| Host operating system | Linux/Windows/ROS |
| Software Development Kit | Vcamera + Camport4 |
| Size | 268 mm x 105 mm x 65 mm |
| Weight | 2080g |
| Data Connector | Gigabit Ethernet |
| Power Supply | M12 A-Code 8-pin aviation connector |
| Power & Trigger Connector | M12 X-Code 8-pin |
| Power Consumption | ≤ 24 W |
| Housing Material | aluminium alloy |
| Ingress Protection | IP65 |
| Cooling method | Passive cooling |
| Installation Method | Mechanical fastening |
| Supply voltage | DC 24 V ~ 48 V |
| Temperature | 0 ~ 40℃ |
| Storage temperature | -10 ℃ ~ 55℃ |

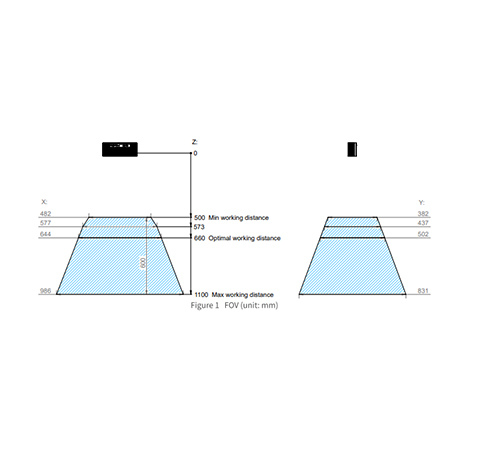

Far field of view
986 mm x 831 mm @ 1100 mm (H/V ≈ 48°/41°)

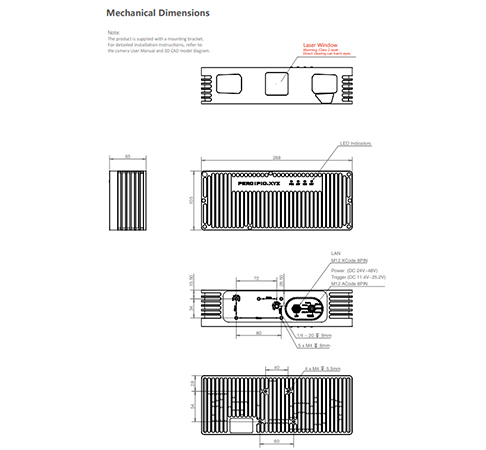

Mechanical Dimensions
