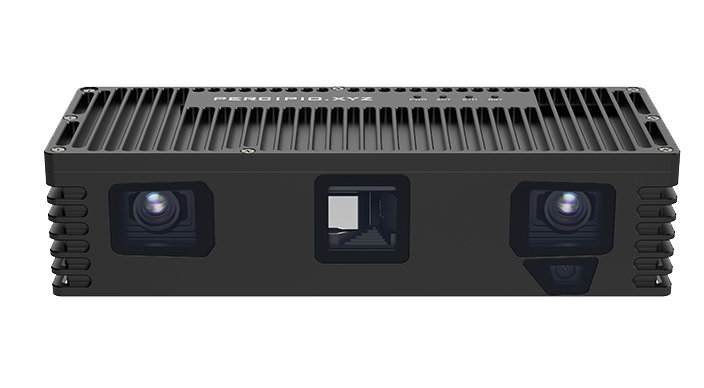

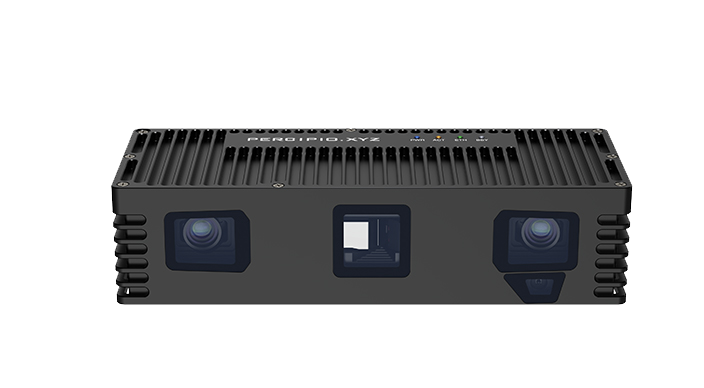

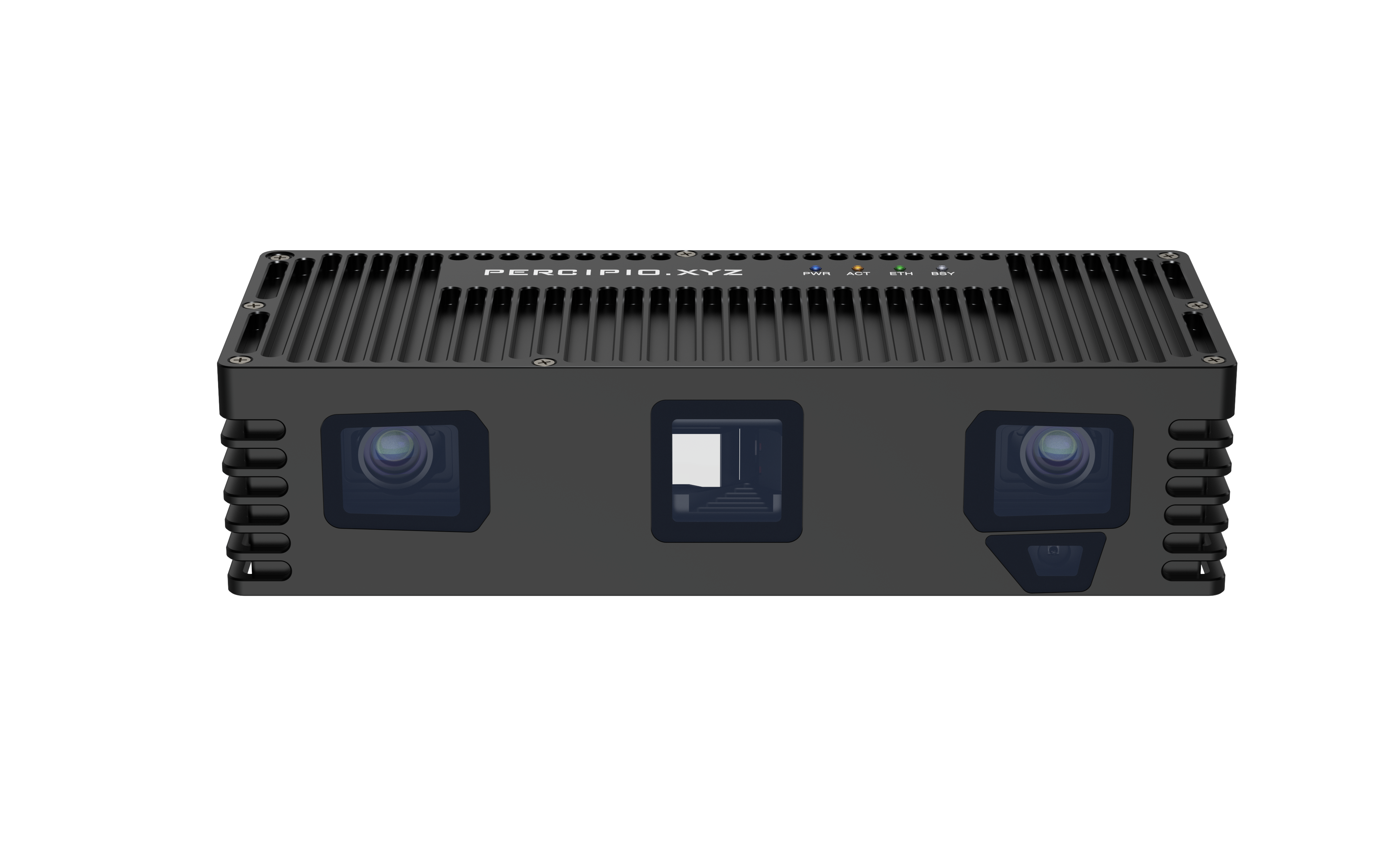

VMD02-4070
3D smart cameras, equipped with active stereo vision technology, offer richer depth-of-field details and greater environmental adaptability, facilitating the implementation of intelligent solutions across various fields such as robotics, industry, and commerce.
-
Dual-eye structured light -
Working distance:
0.4–0.7 m -
Maximum depth resolution: 20480 × 1536 -
Gigabit Ethernet -
Protection rating: IP65
-
Technical Specifications
-
Product Features
-
Downloads

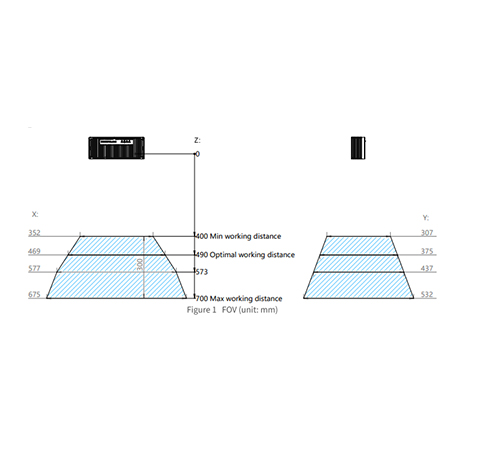

Field of View Diagram
Swipe Left
| Technical Principles | Dual-camera + structured light |
| Laser wavelength | 635 nm (red light) |
| Light source | laser |
| Shutter Type | Global |
| Rendering delay | ~1906ms @ Standard ~2297ms @ Quality ~1749ms @ Fast |
| Depth Resolution | 0.20 @ 400mm 0.25 @ 490mm 0.35 @ 700mm |
| Frame Rate @ Resolution (Color) | / |
| RGB Resolution | Support |
| Output image | Depth map, greyscale image, point cloud |
| Accuracy(Z) | 0.018 @ 400mm 0.022 @ 490mm 0.051 @ 700mm |
| Accuracy(XY) | 0.20 @ 400mm 0.25 @ 490mm 0.35 @ 700mm |
| FOV（H/V） | max 51°/41°±3° |
| Baseline | 180 |
| Working Distance | 400 - 700 |
| Maximum range | 400 - 700 |
| Near field | 352 x 307 |
| Far field | 675 x 532 @ 700mm |
| Host operating system | Linux/Windows/ROS |
| Software Development Kit | Vcamera + Camport4 |

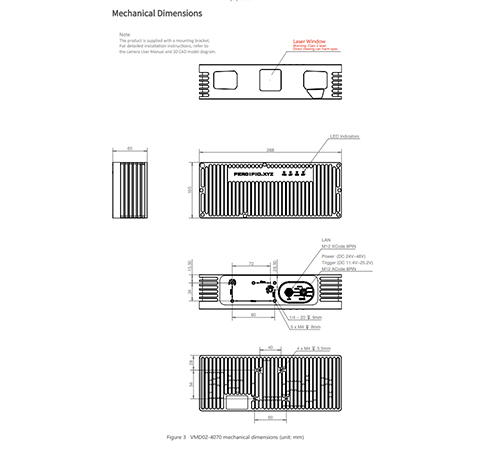

| Size | 268 mm x 105 mm x 65 m |
| Weight | 2080g |
| Data Connector | Gigabit Ethernet |
| Power Supply | M12 A-Code 8-pin aviation connector |
| Power & Trigger Connector | M12 X-Code 8-pin |
| Power Consumption | ≤ 24 W |
| Housing Material | aluminium alloy |
| Ingress Protection | IP65 |
| Cooling method | Passive cooling |
| Installation Method | Mechanical fastening |
| Supply voltage | DC 24 V ~ 48 V |
| Temperature | 0 ~ 40℃ |
| Storage temperature | -10 ℃ ~ 55℃ |
Far field of view
675 mm x 532 mm @ 700 mm (H/V ≈ 51°/42°)
