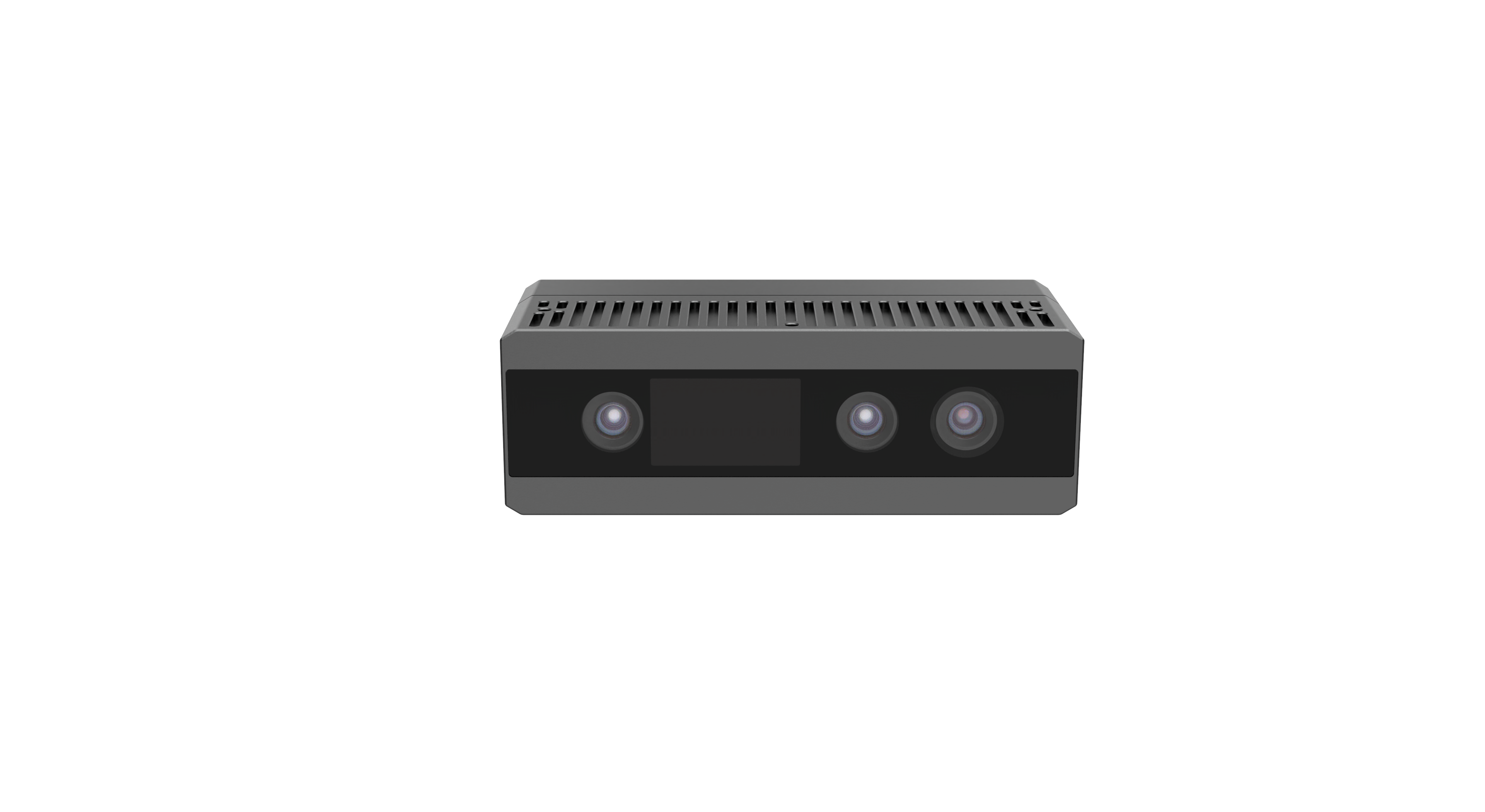

PS800-E1
Utilizing proprietary active stereo vision technology and an embedded computer vision processor, it accurately captures 3D data to enable high-precision measurement of small, static objects, making it suitable for applications such as recognition, classification, and localization.
-
Bilateral speckle-pattern illuminated light -
Working distance: 0.3–1m -
Maximum depth resolution: 1280×960 -
Maximum color resolution: 2560×1920 -
Gigabit Ethernet -
Protection rating: IP65
-
Technical Specifications
-
Product Features
-
Downloads
Field of View Diagram
Swipe Left
| Technical Principles | Active stereo |
| Laser wavelength | 940nm |
| Light source | 1 x infrared laser 1 x infrared floodlight |
| Shutter Type | ROlling |
| Rendering delay | Default mode: approx. 1781 ms Quality mode: approx. 958 ms Fast mode: approx. 568 ms |
| Depth Resolution | 0.8 fps @ 1280 x 960 0.8 fps @ 640 x 480 0.8 fps @ 320 x 240 |
| Frame Rate @ Resolution (Color) | 4fps@2560 x 1920@YUYV 6fps@2560 x 1920@CSI BAYER12GBRG 8fps@1920 x 1440@YUYV 16fps@1280 x 960@YUYV 25fps@640 x 480@YUYV |
| RGB Resolution | Support |
| Output image | Depth map, colour image, infrared image, point cloud |
| Accuracy(Z) | 0.51mm@500 mm 2.01mm@1000mm |
| Accuracy(XY) | 4.57mm@2000mm 6.86mm@3000mm |
| FOV（H/V） | 61°/48° |
| Baseline | 62mm |
| Working Distance | 400mm~800mm |
| Maximum range | 300mm~1000mm |
| Near field | 327mm x 268mm@300mm |
| Far field | 1190mm x 895mm@1000mm |
| Host operating system | Linux/Windows/ROS |
| Software Development Kit | Percipio Camport SDK; supports C, C++, C#, Python and others |
| Size | 140.6 mm x 47.0 mm x 60.0 mm |
| Weight | 544g |
| Data Connector | Gigabit Ethernet |
| Power Supply | M12 X-Code 8 |
| Power & Trigger Connector | M12 A-Code 8-pin aviation connector |
| Power Consumption | ≤ 10.5W |
| Housing Material | aluminium alloy |
| Ingress Protection | IP65 |
| Cooling method | Passive cooling |
| Installation Method | Mechanical fastening (M4 thread) |
| Supply voltage | DC 24V ±10%； PoE (IEEE802.3 at) |
| Temperature | 0 ℃ ~ 45 ℃ |
| Storage temperature | -10 ℃~ 55 ℃ |

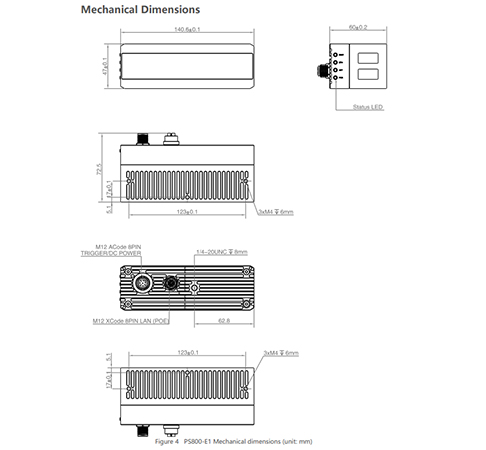

Mechanical Dimensions
