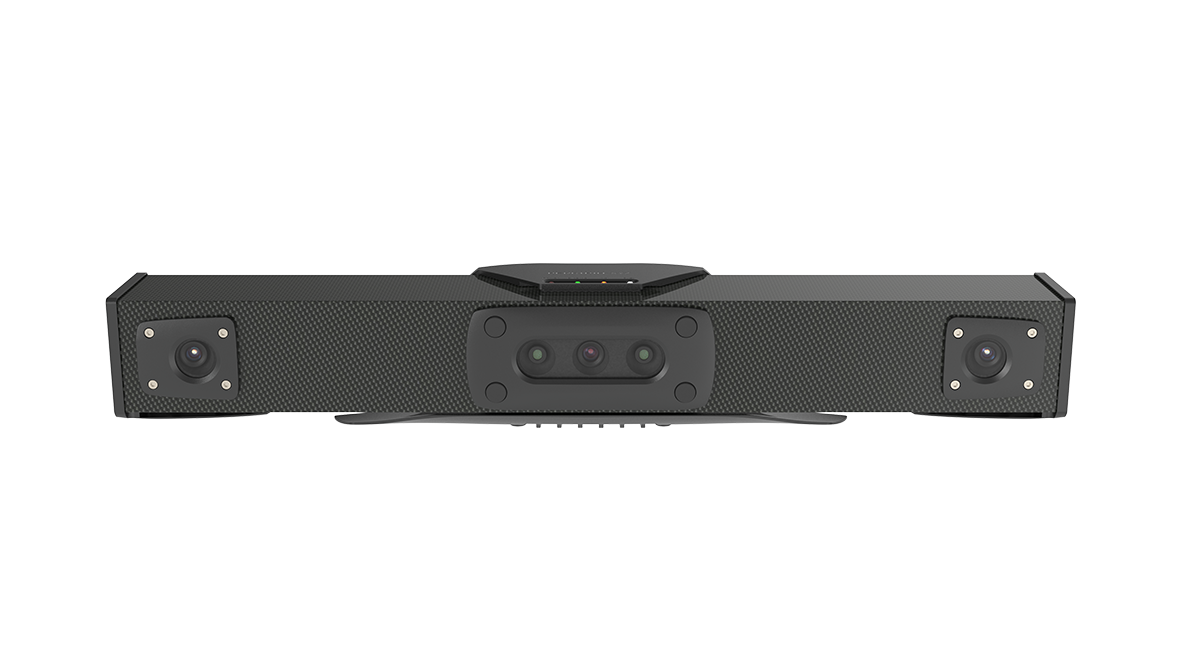

PM806-E1
3D smart cameras, equipped with proprietary active stereo vision technology, offer richer depth-of-field details and greater environmental adaptability, driving intelligent development across multiple sectors.
-
Bilateral speckle-pattern illuminated light -
Working distance: 0.8–4.5 m -
Maximum depth resolution: 1280×960 -
Maximum color resolution: 2560×1920 -
Gigabit Ethernet -
Protection rating:
-
Technical Specifications
-
Product Features
-
Downloads
Field of View Diagram
Swipe Left
| Technical Principles | Active stereo |
| Laser wavelength | 850nm |
| Light source | 2 x infrared lasers |
| Shutter Type | Global |
| Rendering delay | 1672ms |
| Depth Resolution | 0.87 fps @ 1280 x 960 0.87 fps @ 640 x 480 0.87 fps @ 320 x 240 |
| Frame Rate @ Resolution (Color) | 4fps@2560 x 1920@YUYV 6fps@2560 x 1920 CSI BAYER12GBRG 8fps@ 1920 x 1440@YUYV 16fps@1280 x 960@YUYV 25fps@640 x 480YUYV |
| RGB Resolution | Support |
| Output image | Depth map, colour image, infrared image, point cloud |
| Accuracy(Z) | 2.48mm@2000mm 4.25mm@3000mm |
| Accuracy(XY) | 4.57mm@2000mm 6.86mm@3000mm |
| FOV（H/V） | 62°/49° |
| Baseline | 450mm |
| Working Distance | 1250mm~4300mm |
| Maximum range | 800mm~4500mm |
| Near field | 1520mm x 1150mm@125 mm |
| Far field | 4190mm x 3900mm@4300mm |
| Host operating system | Linux/Windows/ROS |
| Software Development Kit | Percipio Camport SDK; supports C, C++, C#, Python and others |
| Size | 538.4mm x 85.5mm x 89.6mm |
| Weight | 2150g |
| Data Connector | Gigabit Ethernet |
| Power Supply | M12 X-Code 8 |
| Power & Trigger Connector | M12 A-Code 8-pin aviation connector |
| Power Consumption | ＜16W |
| Housing Material | Carbon fibre and aluminium alloy |
| Ingress Protection | IP54 |
| Cooling method | Passive cooling |
| Installation Method | Mechanical fastening (M5 screw) |
| Supply voltage | DC 24V ±10%； PoE (IEEE802.3 at) |
| Temperature | 0 ℃ ~ 45 ℃ |
| Storage temperature | -10 ℃ ~ 55℃ |

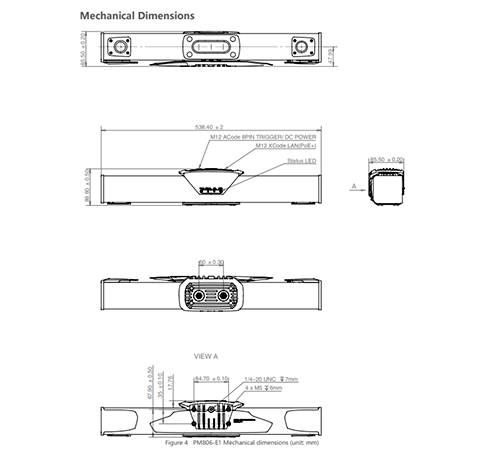

Mechanical Dimensions
