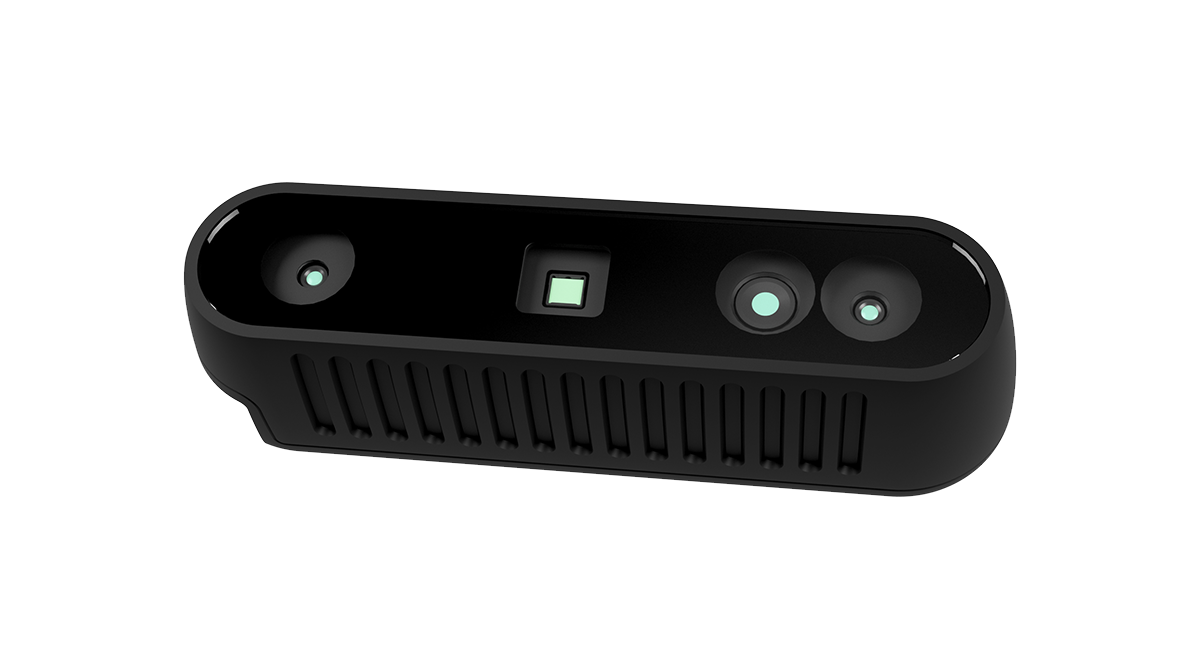

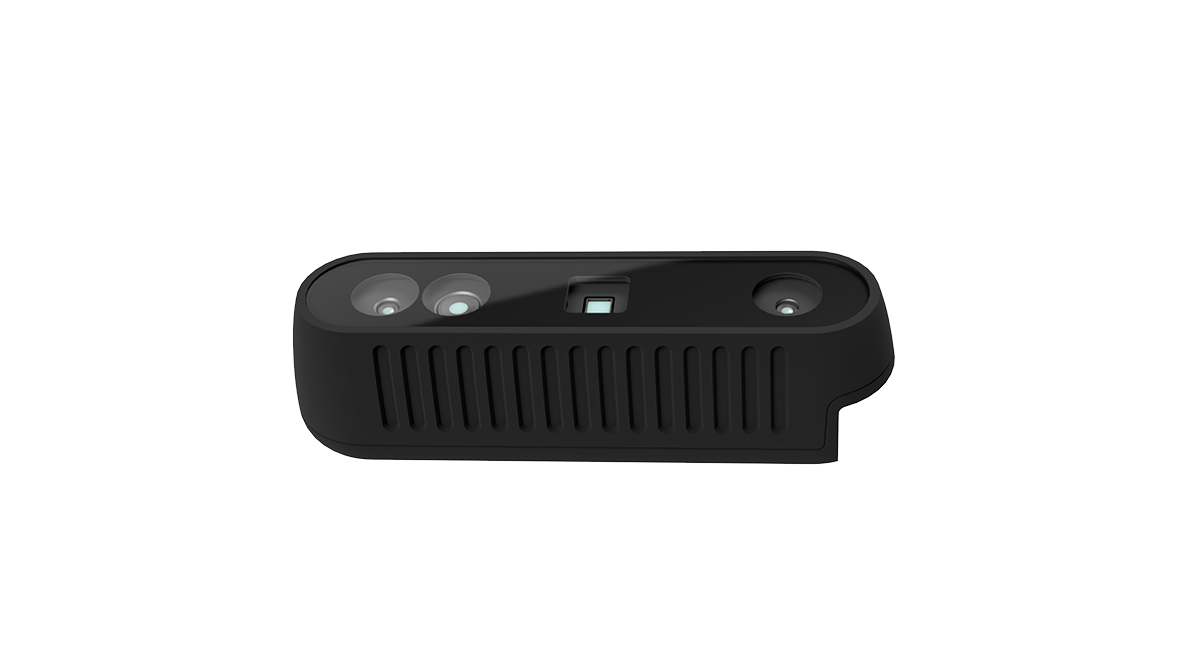

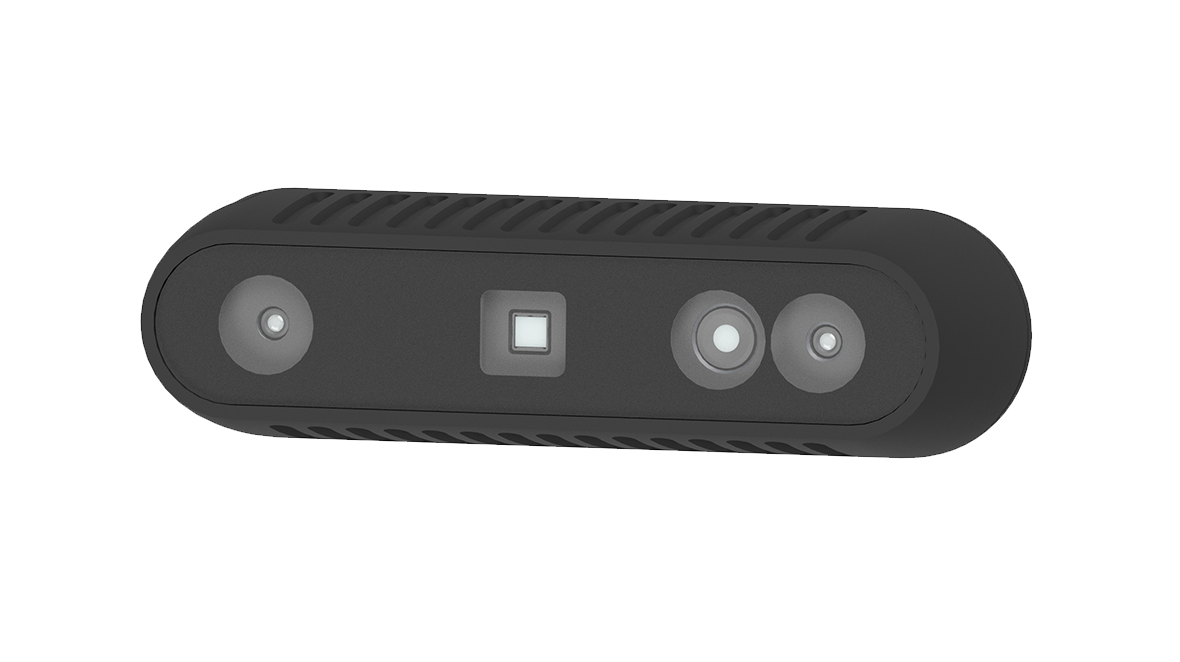

GM463-U2
A cost-effective 3D industrial camera featuring a USB 2.0 Type-C interface and a wide field of view, combining industrial-grade reliability with consumer-grade affordability, making it suitable for a wide range of general-purpose applications.
-
Bilateral speckle-pattern illuminated light -
Operating distance:
0.15–5 m -
Maximum depth resolution: 1280×800 -
1280*960:Maximum color resolution: 1280×960 -
100 Mbps Ethernet -
Protection rating: IP65
-
Technical Specifications
-
Product Features
-
Downloads
Field of View Diagram
Swipe Left
| Technical Principles | Active stereo |
| Laser wavelength | 850nm |
| Light source | 1 x infrared laser |
| Shutter Type | Global |
| Rendering delay | 70ms |
| Depth Resolution | 30fps@640*400（MAX） |
| Frame Rate @ Resolution (Color) | 33fps@640*480（MAX） |
| RGB Resolution | Support |
| Output image | Depth map, colour image, infrared image, point cloud |
| Accuracy(Z) | 1.8mm@1000mm 4mm@1500mm |
| Accuracy(XY) | 16.5mm@1000mm 25mm@1500mm |
| FOV（H/V） | 85°/64° |
| Baseline | 58mm |
| Working Distance | 300mm~3000mm |
| Maximum range | 150mm ~ 6000mm |
| Near field | 521 mm x 375 mm @ 300 mm |
| Far field | 5498 mm x 3749 mm @ 3000 mm |
| Host operating system | Linux/Windows/ROS |
| Software Development Kit | Percipio Camport SDK; supports programming languages such as C, C++, C# and Python |
| Size | 90 mm x 25 mm x 25 mm |
| Weight | 78g |
| Data Connector | / |
| Power Supply | USB2.0 Type-C |
| Power & Trigger Connector | / |
| Power Consumption | < 3.5 W |
| Housing Material | aluminium alloy |
| Ingress Protection | IP5X |
| Cooling method | Passive cooling |
| Installation Method | Mechanical fastening (M3 thread) |
| Supply voltage | Powered via a USB 2.0 Type-C cable |
| Temperature | -10 ℃ ~ 50℃ |
| Storage temperature | -20 ℃ ~ 55℃ |

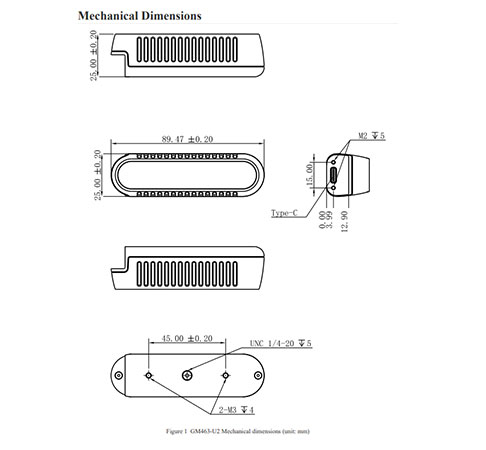

Mechanical Dimensions
Industry Applications
Technical Document
