V-Family

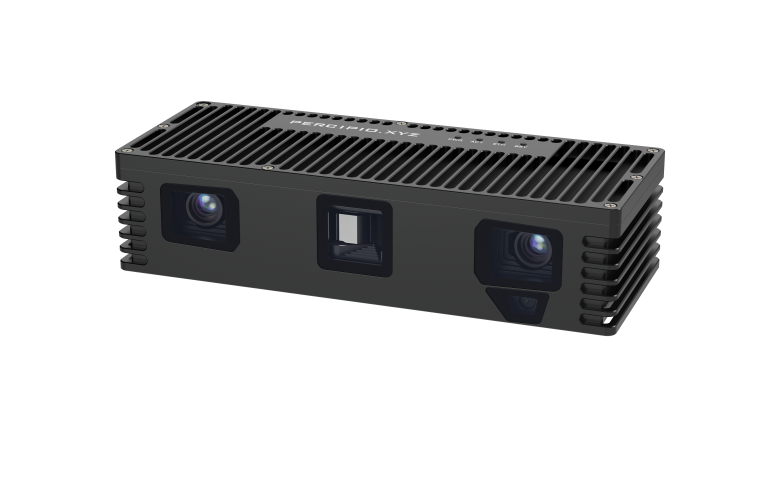

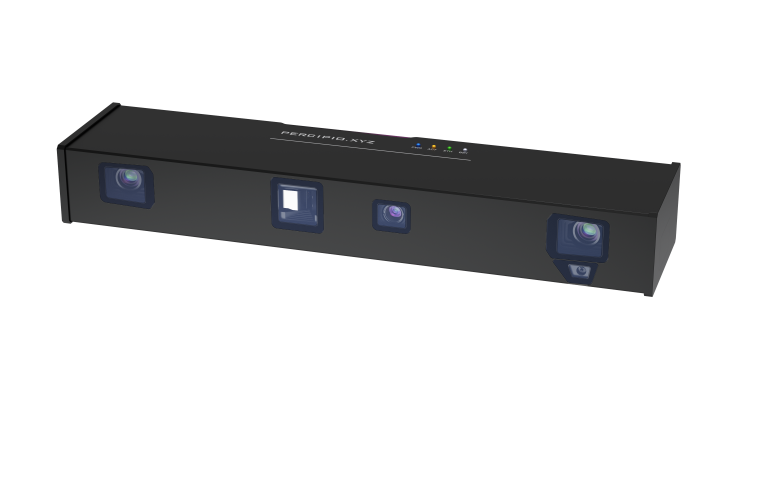

(VMD02-4070,VMD02-5011, VMD03-8521(C),VMD03-1230(C))

High  performance,3M depth resolution, multiple distance/FOV options support wide range of applications.

Model

Working Distance

0.4 m ~ 0.7 m

0.5 m ~ 1.1 m

0.85 m ~ 2.1 m

1.2 m ~ 3 m

FOV(H/V)

51°/42°

52°/42°

51°/41°

51°/41°

Accuracy(Z)

0.023mm@490 mm

0.057mm@660 mm

0.085mm@1190 mm

0.083mm@1200 mm

Accuracy(X,Y)

0.25mm@490 mm

0.33mm@660 mm

0.6mm@1190 mm

0.6mm@1200 mm

Depth Resolution

2048 x 1536

2048 x 1536

2048 x 1536

2048 x 1536

Depth Frame Rate

0.76fps

0.76fps

0.76fps

0.76fps

RGB Resolution

-

-

- / 2560 x 1920

- / 2560 x 1920

Power Supply

DC 24 V ~ 48 V

DC 24 V ~ 48 V

DC 24 V ~ 48 V

DC 24 V ~ 48 V

Power & Trigger Connector

M12 A-Code, 8-pin,

male connector

M12 A-Code, 8-pin,

male connector

M12 A-Code, 8-pin,

male connector

M12 A-Code, 8-pin,

male connector

Data Connecter

M12 X-Code, 8-pin,

female connector,

Gigabit Ethernet

M12 X-Code, 8-pin,

female connector,

Gigabit Ethernet

M12 X-Code, 8-pin,

female connector,

Gigabit Ethernet

M12 X-Code, 8-pin,

female connector,

Gigabit Ethernet

Power Consumption

≤ 24 W

≤ 24 W

≤ 24 W

≤ 24 W

Temperature

Operation:0 ℃ ~ 40 ℃
Storage:-10 ℃ ~ 55 ℃

Operation:0 ℃ ~ 40 ℃
Storage:-10 ℃ ~ 55 ℃

Operation:0 ℃ ~ 40 ℃
Storage:-10 ℃ ~ 55 ℃

Operation:0 ℃ ~ 40 ℃
Storage:-10 ℃ ~ 55 ℃

Ingress Protection

IP65

IP65

IP65

IP65

Size

268 mm x 105 mm x 65 mm

268 mm x 105 mm x 65 mm

449 mm x 104 mm x 64 mm

449 mm x 104 mm x 64 mm

Weight

2080 g

2080 g

2307 g

2307 g

            *Models with “C” suffix feature RGB supported; non-C models do not.
            e.g.: VMD03-8521C (RGB supported) | VMD03-8521 (No RGB)
