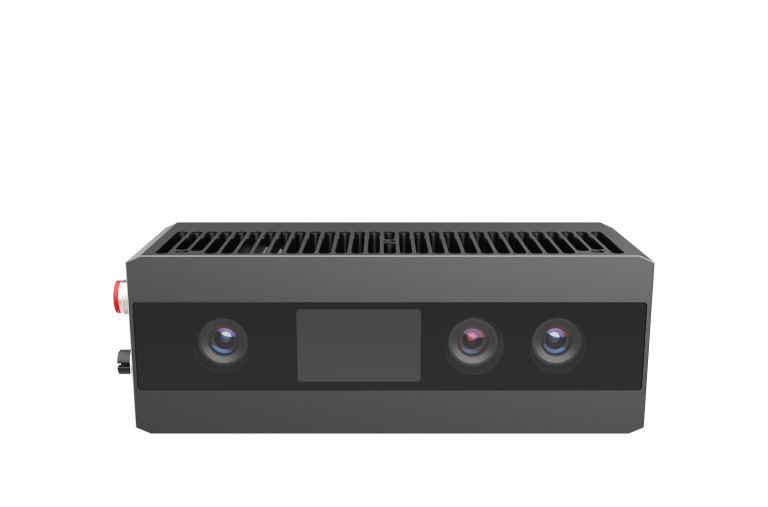

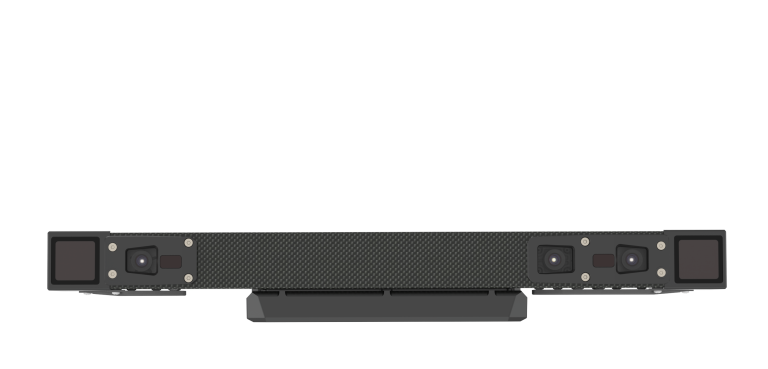

P Series

(PM805-E1PM806-E1PS801-E1PS800-E1)

P series adopts innovative active stereo visiontechnology with core patents and uses embedded processor to perform 3D-data calculation for targets.

Model

Working Distance

0.8m-4.3m

1.25m-4.3m

0.5m-3m

0.2m-1m

FOV(H/V)

64°/49°

62°/46°

59°/46°

63°/48°

Accuracy(Z)

0.56mm@900mm;
3.14mm@2000mm

0.59mm@1300mm;
1.59mm@2000mm

0.73mm@600mm;
3.33mm@1500mm

±0.1 mm @ 200 mm;
±0.6 mm @ 500 mm

Accuracy(XY)

5.72mm@2500mm

6.86mm@3000mm

4.80mm@1500mm

1.2 mm @ 500 mm

Depth Resolution

1280*960

1280*960

1280*960

1280*960

RGB Resolution

2560*1920

2560*1920

2560*1920

2560*1920

Power Interface

DC 24V / IEEE802.3at PoE

DC 24V / IEEE802.3at PoE

DC 24V / IEEE802.3af/at PoE

DC 24V / IEEE802.3af/at PoE

Trigger Signal

8-pin aviation interface

8-pin aviation interface

8-pin aviation interface

8-pin aviation interface

Data Interface

Gigabit Ethernet

Gigabit Ethernet

Gigabit Ethernet

Gigabit Ethernet

Power Consumption

6.0W ~ 16.0W

6.0W ~ 16.0W

4.5W ~ 10.5W

< 10.5W

Temperature

Storage:-10℃~55℃; Operation:0℃~45℃

Storage:-10℃~55℃; Operation:0℃~45℃

Storage:-10℃~55℃; Operation:0℃~45℃

Storage:-10℃~55℃; Operation:0℃~45℃

Ingress Protection

IP54

IP54

IP67

IP65

Size

388.4mm*85.5mm*89.6mm

538.4mm*85.5mm*89.6mm

176.5 mm* 57.0 mm* 63.9 mm

140.6 mm x 47 mm x 60 mm

Weight

1.93kg

2.2kg

894 g

555 g
