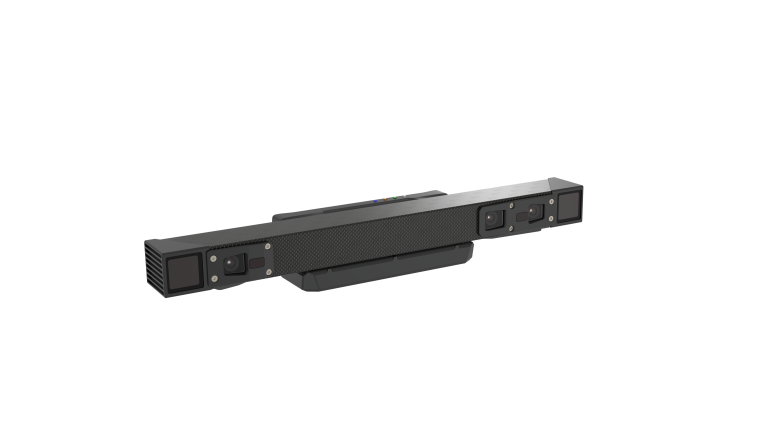

PMD03-E1

Model

PMD03-E1

Working Distance

1 m ~ 3m

FOV（H/V）

51°/41°

Accuracy(Z)

0.79mm@1500mm

2.70mm@2500mm

Accuracy(XY)

3.35mm@1500mm

5.63mm@2500mm

Latency of image acquisition [1]
@ depth resolution

833 ms @ 2048 x 1536
727 ms @ 1024 x 768
700 ms @ 512 x 384

Frame Rate @ Resolution (RGB）

4 fps @ 2560 x 1920 @ YUYV
5 fps @ 2560 x 1920 @CSI BAYER12GBRG
15 fps @ 1280 x 960 @YUYV
15 fps @ 640 x 480 @YUYV

Power Supply

DC 24 V （±10%），≥ 1 A；
PoE (IEEE802.3 at)

Power & Trigger Connector

M12 A-Code, 8-pin, male connector

Data Connector

M12 X-Code, 8-pin, female connector
Gigabit Ethernet

Power Consumption

＜ 21.5W

Temperature

Operation：0 ℃ ~ 45 ℃

Storage：-10 ℃ ~ 55 ℃

Ingress Protection

IP65

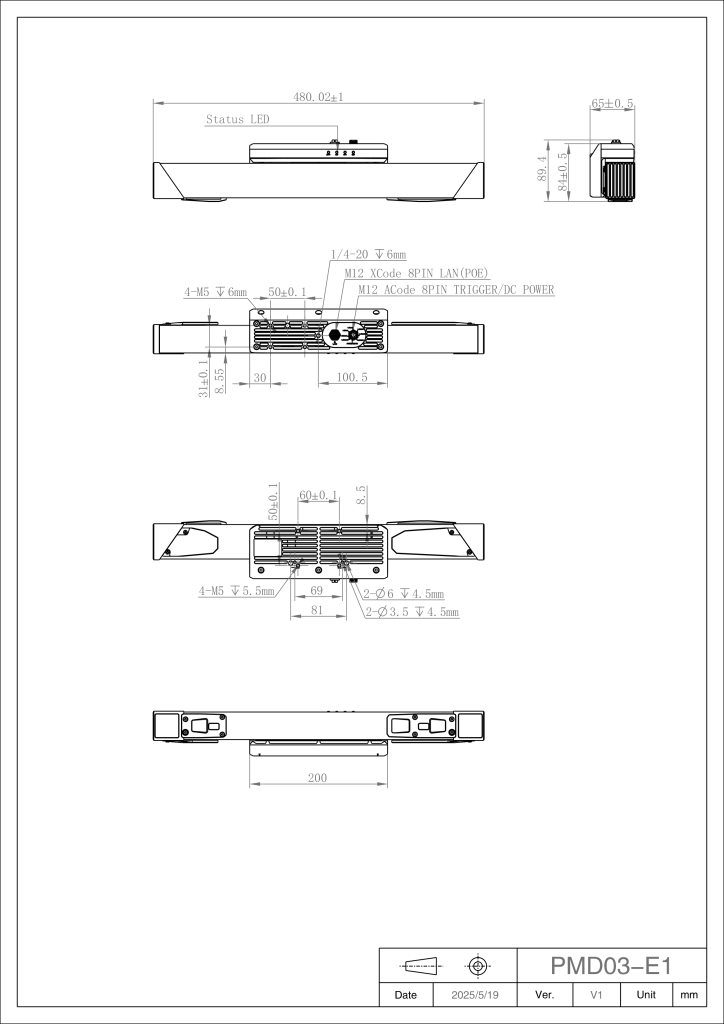

Size

480 mm x 84 mm x 65 mm

Weight

1368 g
