Model

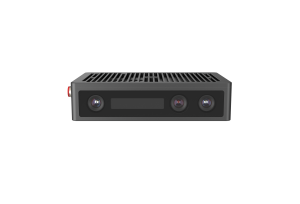

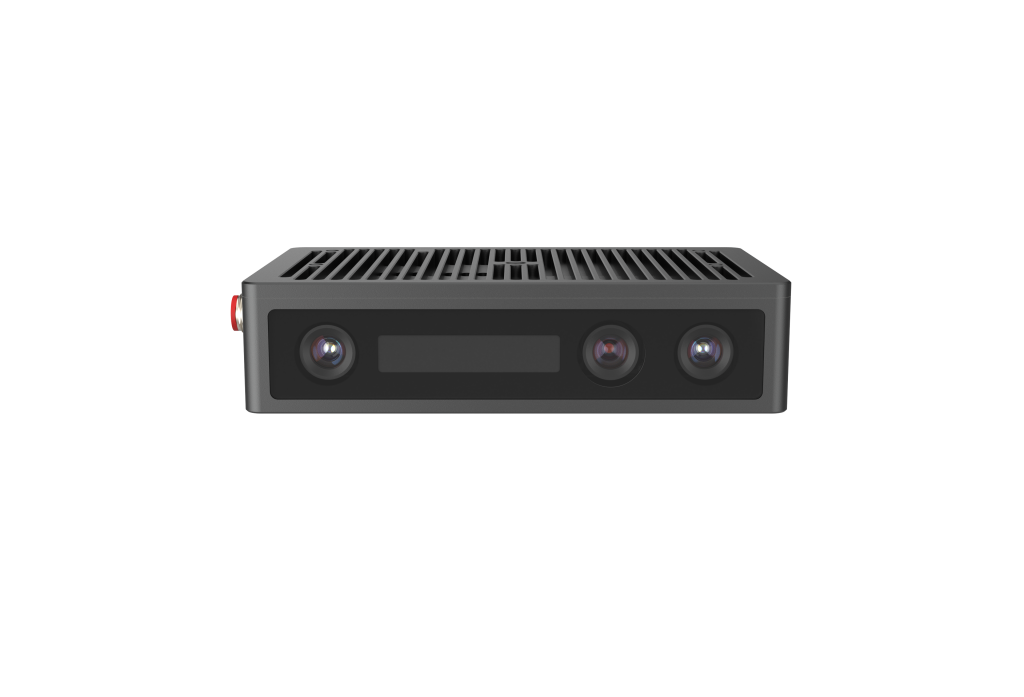

FM855-E1

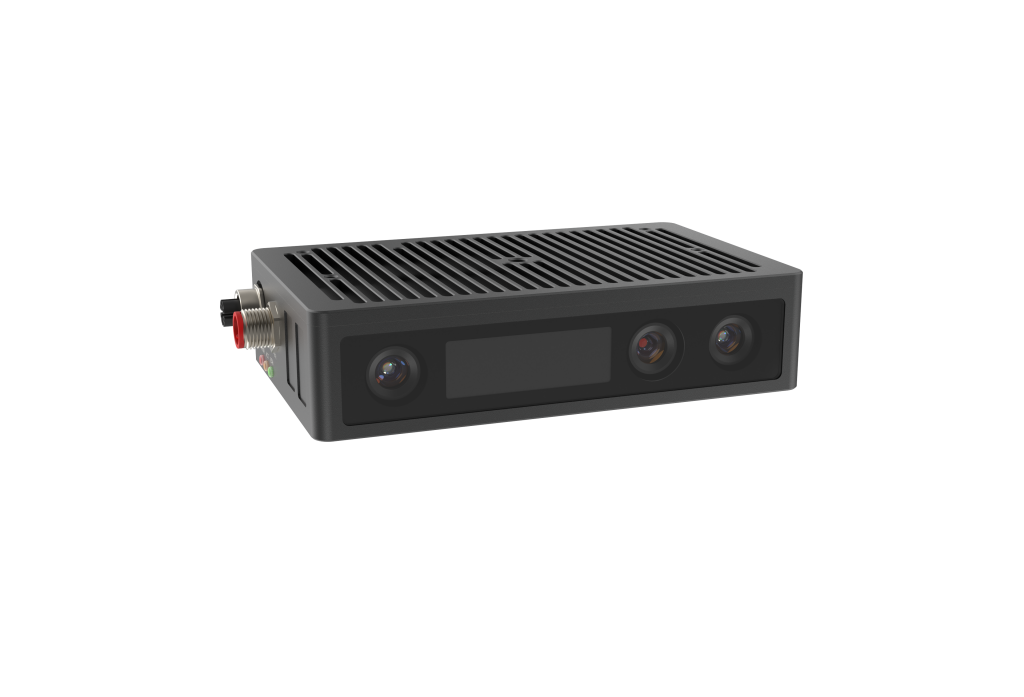

FM815-IX-E1

Working Distance

0.8m – 3.0 m

0.8-3.0m

FOV（H/V）

60°/48°

60°/48°

Accuracy(Z)

1.33mm@1000mm；
2.30mm@1500mm

1.56mm@1000mm；1.80mm@1500mm

Accuracy(XY)

6.86mm@1000mm；
10.29mm@1500mm

3.20mm@1000mm; 4.80mm@1500mm

Depth Resolution

1280 x 960

1280 x 960

Depth Frame Rate

15 fps

5 fps

RGB Resolution

2560 x 1920

2560 x 1920

Power Supply

DC 24V±10%；

PoE(IEEE802.3af/at)

DC 24V ±10% ; PoE(IEEE802.3af/at)

Power & Trigger Connector

M12 A-Code, 8-pin, male connector

M12 A-Code, 8-pin, male connector

Data Connecter

M12 X-Code, 8-pin, female connector Gigabit Ethernet

M12 X-Code, 8-pin, female connector
Gigabit Ethernet

Power Consumption

5W ~ 9W

5.0W ~ 11.3W

Temperature

Storage：-20℃~55℃; Operation：-10℃~50℃

Storage：-20℃~55℃; Operation：-10℃~50℃

Ingress Protection

IP65

IP65

Size

145mm*35mm*90mm

145mm*35mm*90mm

Weight

620 g

620g
