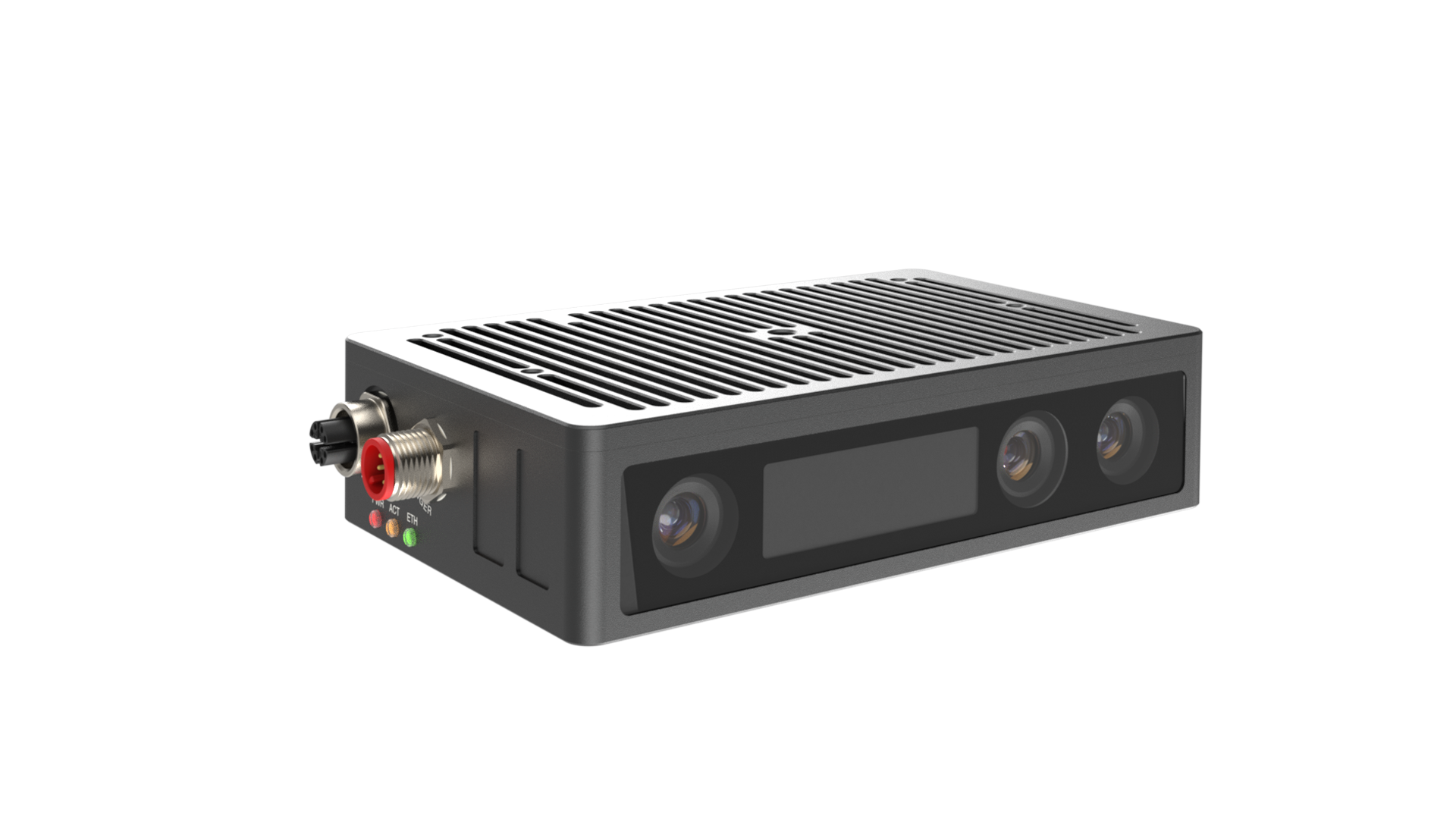

FM815-IX-E1

Enhanced Structured Light Projector, Higher Accuracy, IP65

Parameters

Model

FM815-IX-E1

Working Distance

0.4m-8.0m

FOV(H/V)

60°/48°

Accuracy(Z)

1.56mm@1000mm;1.80mm@1500mm

Accuracy(XY)

3.20mm@1000mm;  4.80mm@1500mm

Depth Resolution

1280 x 960

RGB Resolution

2560 x 1920

Power Supply

DC 24V ; PoE(IEEE802.3af/at)

Power & Trigger Connector

M12 A-Code, 8-pin, male connector

Data Connector

M12 X-Code, 8-pin, female connector Gigabit Ethernet

Power Consumption

5.0W ~ 11.3W

Temperature

Storage:-20℃~55℃; Operation:-10℃~50℃

Ingress Protection

IP65

Size

145mm*35mm*90mm

Weight

620 g

Size
